Flexible Cable Assembly: How does it differ from Flexible RF / coaxial assemblies

Flexible Cable Assembly solutions are essential wherever rigid wiring can’t fit or survive, such as inside tight hinges, sliding mechanisms, rotating joints, and compact electronic housings where you still need clean signals and dependable power.

By combining flexible conductors with space-efficient layouts, they help reduce mechanical stress and improve long-term reliability in moving or confined assemblies.

Wiringo will offer Flexible Cable Assembly services to support these demanding applications from design through production.

What is a Flex cable assembly?

A Flex cable assembly is a pre-engineered, bendable interconnect that routes power and signals through tight, contoured, or moving spaces where rigid PCBs or traditional wiring can’t be used.

Flex cable assemblies come in two main families:

• Flat Flexible Cables (FFCs): thin, ribbon-style signal carriers used in compact electronics.
• Flexible RF / coaxial assemblies: bendable coax jumpers that preserve impedance and shielding while the equipment moves.

Both types act as compact, flexible carriers for signals and still meet strict electrical, mechanical, and reliability requirements.

Design goals

For both FFCs and flexible RF/coax, the design targets are straightforward:

• Maintain signal integrity: controlled impedance where needed, low crosstalk and jitter, and stable high-speed paths even while the cable flexes.
• Keep terminations secure under vibration and motion, with proper strain relief so connectors (not conductors) carry the load.
• Fit inside the mechanical envelope: hinges, slides, gimbals, telescoping sections, and tight PCB spacing.
• Deliver the required current and frequency performance without oversizing the cable and wasting space or mass.

 Flex Cable Assembly Applications

Our engineers use flex cable assemblies wherever they need dense connectivity in tight or moving spaces. Typical roles include:

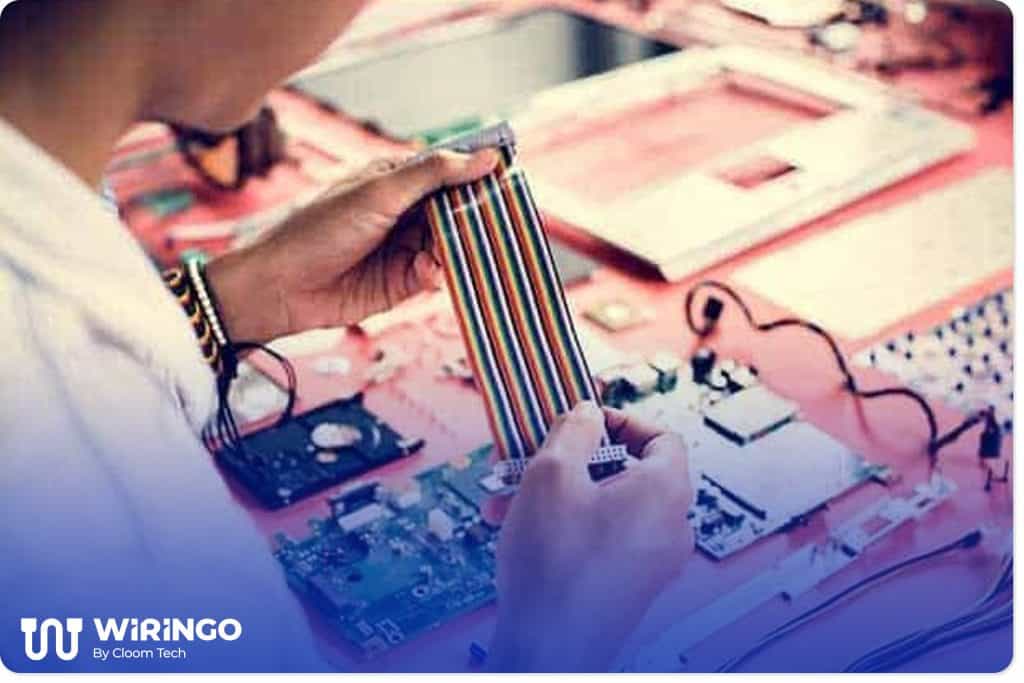

• Linking boards, displays, sensors, keypads, and user interfaces inside compact devices
• Connecting RF modules, antennas, and test points in communication and electronic systems
• Routing power and signals in medical instruments, POS terminals, industrial controls, and telecom/networking gear
• Supporting compact, lightweight wiring in aerospace, robotics, and other motion-heavy equipment

In real service, flex cable assemblies handle:

• Repeated bending and flex cycles in robot axes, moving panels, hinges, and cable carriers
• Temperature swings driven by the host equipment or environment
• Exposure to moisture, oils, coolants, and cleaning chemicals in industrial and robotic settings
• Dust, UV, and outdoor conditions where the application requires it
• Continuous vibration near motors, pumps, fans, pumps, and actuators

To stay reliable under these conditions, we design flex cable assemblies to prevent:

• Conductor fatigue and breakage at bend points
• Cracked, embrittled, or delaminated insulation and jackets
• Fretting, loosening, or micro-movement at contacts and terminations
• Shielding discontinuities that degrade EMC performance
• Moisture ingress at jackets, connectors, and interfaces

Flat Flexible Cables (FFC) vs Flexible RF / coaxial assemblies

Flat Flexible Cables (FFC)

• Function: Compact, low-profile wiring between boards and modules where space and height are tight. FFCs are essentially flat ribbons of parallel conductors, ideal for laptops, scanners, printers, mobile devices, and LCD applications.
• Motion: Often see repeated folding along a hinge or short sliding strokes. The design isolates the flex region and avoids twisting.
• Signals: Frequently used for high-frequency or high-speed signals such as display drivers and sensor data. We select shielded or unshielded versions based on EMI sensitivity.

Flexible RF / coaxial assemblies

• Function: RF jumpers between boards, modules, enclosures, and antennas, where the path must bend without compromising impedance or shielding.
• Motion: Can handle repeated repositioning, routing around tight corners, or vibration in telecom, test, and aerospace hardware.
• Signals: 50 Ω and 75 Ω assemblies for data, RF, and video applications, including options up to tens of GHz with low loss and tight VSWR.

In many projects, FFCs and flexible coax sit side by side: FFCs handle dense digital lines to the display or UI, while flexible coax takes care of RF antennas, RF test points, or precision measurement channels.

Materials and Construction

Flat Flexible Cables (FFC)

FFC assemblies start with conductors and films built for tight spaces and repeated motion:

• Flat, parallel copper conductors embedded in a flexible insulation that behaves like a thin ribbon.
• Pitches such as 0.3 mm, 0.5 mm, and 1.0 mm, with up to 80 conductors depending on the interface density.
• PET insulation built to UL 20624 where required, supporting reliable flexing in display and instrumentation applications.

Connection and strain-relief options include:

• ZIF-style FFCs that mate into low-profile zero-insertion-force connectors for easy, low-stress assembly.
• Assemblies with IDC ribbon connectors for quick, secure termination into standard headers.
• FFCs crimped into receptacle housings or discrete-wire connectors where the cable must transition into traditional harness branches.
• Overmolded flex cable assemblies and latch-style receptacle housings that add mechanical locks and molded strain relief to survive vibration and handling.

Translating requirements into FFC construction

Before we lock in an FFC design, we determine:

• Required connector spacing: exact distances between connectors and boards so the FFC can follow the motion path without excess slack or over-stretch.
• Pin configuration: signal grouping, ground pins, and any reserved positions for shields or future expansion.
• Available internal space: true cross-sectional envelope inside the device so we can pick the pitch, conductor count, and fold pattern that will actually fit.

FFC connectors are generally metal, with shielded mechanical locks and multi-point grounding structures. That combination supports high data rates and effectively prevents EMI leakage while keeping the connector mechanically stable in service.

Flexible RF / coaxial assemblies

Flexible coaxial assemblies use selected coax types to optimize both their RF performance characteristics and their bend behavior.

• RF cable assemblies in 50 Ω and 75 Ω versions for telecom, data networks, broadcasting, and lab test/measurement.
• Flexible RF cable assemblies that use a stranded center conductor and flexible outer jacket (often polyurethane) so they can snake through tight layouts without kinking.
• Conformable options that hold a formed shape while still providing high-frequency performance up to around 40 GHz.
• Low-loss coaxial assemblies that improve stability and robustness versus standard RG cables, with flame-retardant, halogen-free constructions where required.
• High-performance RF lines with PTFE cores, triple shielding, precision connectors, and frequency options beyond 65 GHz+ for demanding microwave applications.

Connector options span SMA, BNC, N, F, MCX, MMCX and others, selected to match target frequency, power, and mechanical constraints.

In compact electronics where FFCs start to hit their limits at very high bit rates or long distances, micro-coax within a flexible assembly can take over to maintain signal integrity in the same tight spaces.

Flex Cable Assembly Standards and Compliance

Flexible cable assemblies share the same quality backbone as Wiringo’s other harnesses:

• Facilities certified to ISO 9001 and IATF 16949, with automotive-grade process control.
• Use of UL-listed materials and RoHS / REACH-compliant components, with WEEE support where applicable.
• For FFCs, adherence to FPDI-1 and VESA display interface standards where those apply to the customer’s design.
• For flex assemblies used in demanding environments, manufacturing practices aligned with SAE and IPC/WHMA-A-620 workmanship standards, and compliance with UL, CSA, and RoHS regulations.

Inspection and Testing

Every flexible assembly goes through a mix of electrical, mechanical, and visual checks before shipment.

Baseline production tests

We can test FFC and flexible RF assemblies in the following ways:

• Continuity and short-circuit tests on every net
• Insulation resistance and high-voltage withstand
• Pull-force checks on terminations
• Functional performance tests where the customer provides a specific test plan

All terminal crimping passes through cross-section analysis to confirm proper compression, barrel fill, and absence of defects.

High-speed FFC signal integrity tests

For high-speed FFCs, we add dedicated signal-integrity validation:

• We measure crosstalk, jitter, and impedance using oscilloscopes and impedance analyzers. These measurements require specialized FFC fixtures and shielded enclosures.
• Bending tests are combined with electrical measurements to verify how flexing affects those parameters over the intended motion profile.

The result is a set of oscilloscope waveforms and a detailed test report that documents the test setup, limits, and pass/fail outcomes for the assembly.

RF/coax performance tests

Flexible RF assemblies are validated for:

• Impedance and return loss across the specified frequency range
• Insertion loss relative to the target cable family
• Any phase- or amplitude-stability requirements for high-frequency applications

Where the application demands, we combine RF testing with mechanical flex and environmental cycling so we can prove that performance holds up under repeated bending and temperature changes.

How to Build a Flexible Cable Assembly

A typical build process for flexible cable assemblies looks like this:

1. Raw material preparation and inspection
   We check incoming FFC films, coax cables, connectors, and terminals against the bill of materials and inspect them before releasing them to production.
2. Conductor crimping and insulation adhesion
   Where discrete terminations are involved, we prepare conductors and bond or laminate them as required for the chosen flex construction.
3. Cutting
   We cut cables or films to precise length, accounting for bend allowances, fold lines, and connector insertion depths.
4. Terminal crimping and soldering
   We apply terminals using precision crimping machines with dedicated dies for each terminal family. The crimp depth must meet the terminal manufacturer’s specifications, and we verify this both by pull testing and cross-section analysis.
5. Appearance processing and surface printing
   We clean up cables, deburr edges where necessary, and print identification text or graphics onto the surface.
6. Adding QR code markers
   We add QR labels or printed codes to link each assembly to its lot, test results, and documentation.
7. First-Article Inspection
   The first assembly of a new design or revision undergoes detailed dimensional, visual, and electrical checks, and we document the results in an FAI report.
8. Final inspection before shipment
   Before shipping, each piece or batch undergoes a final visual review plus 100% electrical testing according to the released test plan.

This same process scales from one-off prototypes to mass production, with the same focus on traceability and repeatability.

Typical Flexible Cable RFQ Checklist

Providing complete information at RFQ keeps iterations low and helps us propose the right construction from the start.

For FFCs and flexible RF/coax assemblies, it helps to specify:

• Mechanical envelope
  • Cable path length, connector spacing, and available height/width
  • Movement type (hinge, slide, rotation), stroke, and expected flex cycle life
  • Any constraints on bend radius or restricted areas inside the equipment
• Electrical and signal details
  • For FFCs: signal types (LVDS, GPIO, sensor, power), required impedance control, and any high-frequency or high-speed lines that may need shielding.
  • For RF/coax: characteristic impedance, frequency range, power level, and target loss or VSWR.
• Connector and interface requirements
  • Connector families, pin counts, and orientations
  • Required connector spacing and pin configuration
  • Any metal, shielded, or mechanically locked FFC connectors needed for EMI and mechanical robustness
• Environment and standards
  • Temperature range, exposure to oils, chemicals, water, dust, or sunlight
  • Applicable standards (e.g., automotive, medical, telecom) and any specific compliance documentation needed
• Test and documentation scope
  • Required electrical and RF tests (continuity, hipot, SI, RF sweeps)
  • Whether oscilloscope waveforms or SI plots are needed with the delivery

Project Workflow

From first RFQ to mass production, flexible cable projects follow a structured flow:

RFQ intake and DFM review

• You send drawings, connector specifications, motion requirements, and environmental targets.
• Our engineering team reviews the design for manufacturability (DFM), checking routing, bend regions, strain relief, and shielding strategies against real production capabilities.

Prototyping and First Article

• We recommend a prototype or pilot build to validate fit, folding, routing, and signal integrity.
• First-article units go through the full process flow and come with FAI documentation to resolve any issues before ramp-up.

Controlled production

Once the design is frozen:

• Raw materials enter the production line under controlled lot numbers.
• Assemblies run through the standard flexible-cable build steps: cutting, crimping, soldering, overmolding or strain-relief, printing, QR marking, and staged inspections.
• 100% electrical tests and any special SI/RF checks apply according to the control plan.

Flexible Cable Assemblies: Competitive Advantages

For flexible cable assemblies (both FFCs and flexible RF/coax), three main strengths stand out:

• Response speed
  Quotes and early DFM feedback arrive quickly, letting your team iterate on mechanical and electrical details without waiting weeks between rounds.
• Quality assurance
  ISO 9001 and IATF 16949 certifications, UL-approved materials, full traceability, and a test regime that spans electrical, mechanical, environmental, and EMI checks provide a disciplined quality backbone.
• Solution design experience
  Years of building custom FFCs, ribbon assemblies, and coax harnesses for robotics, consumer electronics, and industrial systems mean the team can help you choose the right combination of cable type, shielding, connectors, and strain-relief for your specific motion and environment.

On top of that, Wiringo has already delivered flexible cable solutions for clients such as Printed Aerospace, Ajax Detector, and Planmed —projects that demand compact routing, reliable motion behavior, and clean high-frequency performance.

The net result: a supplier with clear advantages in response speed and quality assurance, backed by extensive experience in flexible-cable solution design.

FAQ

Which standards apply to flexible cable assemblies?

Flexible cable assemblies follow established workmanship and quality frameworks: ISO 9001 and IATF 16949 for manufacturing, IPC/WHMA-A-620 workmanship standards where applicable, and compliance with UL, CSA, RoHS, and other relevant regulations depending on project requirements.

How do you keep flex cables reliable under repeated bending?

We define a dedicated flex zone that follows the equipment’s natural motion, uses the shortest bending path, and maintains a minimum bend radius matched to the cable’s flex rating. The fixed end is fully supported at the connector, while the moving end has 10–20% extra length over the stroke to avoid tension. Materials and jackets are chosen for the environment, and tests verify performance after flex cycling.

How do you handle EMI for high-speed FFCs and mixed-signal assemblies?

For high-speed FFCs, we control impedance and crosstalk through conductor layout and pitch, adding shielding only where it’s needed and grounding it at a single end to avoid ground loops. In mixed-signal assemblies, sensitive lines can be moved to micro-coax within the same build while other signals stay on the FFC.

How do I know if I should use FFC or flexible coax?

As a rule of thumb, FFCs are ideal for dense, short-to-medium-distance board-to-board connections where height and routing space are the main constraints. Flexible coax takes over when controlled impedance at RF frequencies, longer runs, or tight loss and shielding performance are required. Engineering teams can evaluate options based on data rate, frequency, and mechanical envelope to avoid over- or under-designing the interconnect.
