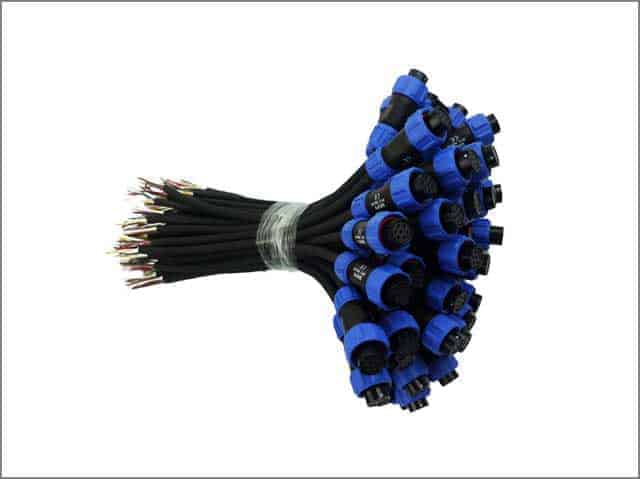

Waterproof Cable Assemblies
Wiringo provides custom waterproof cable assemblies for industrial automation, automotive, and marine industries. With precision engineering, customization, and quick turnaround, our high-performance solutions stand out from the competition.
Our Clients
Waterproof cable assemblies are vital for applications ranging from outdoor lighting to marine equipment, providing protection against water, dust, and extreme conditions.
IP-Rated Assemblies Perfect For Harsh Environments
The water and dustproof of a cable assembly product are defined by its Ingress Protection (IP) numbers.
| IP rating guide | |||
| Protection against solid objects like dust and sand | Protection against liquids | ||
| 0 | Zero Protection | No protection | 0 |
| 1 | Protection against solid objects larger than 50mm | Protection against vertically falling drops of water | 1 |
| 2 | Protection against solid objects larger than 12mm | Protection against direct sprays up to 15° from the vertical | 2 |
| 3 | Protection against solid objects larger than 2.5mm | Protection against direct sprays up to 60° from the vertical | 3 |
| 4 | Protection against solid objects larger than 1mm | Protection against sprays from all directions with limited ingress allowed | 4 |
| 5 | Limited protection against dust with no harmful deposits | Protection against low-pressure water jets from all directions with limited ingress allowed | 5 |
| 6 | Fully protected against dust | Protection against strong water jets (e.g., for use on ship decks) with limited ingress allowed | 6 |
|
Protection against water jets with higher pressure | 6k | |
| Protection against the effects of temporary immersion between 15cm and 1m for up to 30 minutes | 7 | ||
| Protection against the effects of temporary immersion of at least 1m | 8 | ||
| Protection against prolonged immersion under pressure | 9 | ||
Waterproof Cable Assembly Products
Wiringo offers a service to protect any custom cable application in the commercial market from design through production.
Waterproofing USB Male Connector Cable
In addition to O-ring seals and threaded coupling that ensure IP67/68-rated protection from water and dust, the assemblies feature a waterproof connector on one end of the body to connect USB devices to a panel or enclosure.
Waterproof M12/M8 Cable Assembly
Our M8/M12 cable assembly further improves the waterproofing of circular connectors with rubber O-rings and a front-mounted compression seal. These signal terminals can ensure communication between devices and networks within an industrial environment.
Waterproof (IP68 Rated) RF Cable Assemblies
These waterproof coaxial connectors feature an internal seal and O-ring, which offer IP67 and IP68 protection from moisture and particle ingress through the inner contact and bulkhead panel.
Why Choose Wiringo?
Wiringo excels by offering fast delivery, reliable products, a wide selection of cable assemblies, and personalized customer support.
Fast Delivery
Wiringo ensures rapid processing and shipping of your orders, minimizing downtime and meeting tight project deadlines.
Reliable
Our products are crafted precisely and tested for durability, ensuring consistent, long-lasting performance in demanding environments.
Diverse Selection
With a wide range of customizable solutions, Wiringo can meet the specific needs of various industries, from automotive to outdoor electronics.
One-on-One Assistance
Our dedicated team offers personalized support, guiding you through product selection and providing expert advice for your unique requirements.
Our Manufacturing Capabilities
At Wiringo, we combine innovative engineering with extensive customization options to deliver solutions that perfectly match your project’s unique needs.
Services
Depending on your custom configuration, we use several cable terminations to make waterproof wire and cable assembly.
- For over-molded connectors, we utilize: Carefully matched materials to ensure an internal seal between the stranded wire, cable jacket, and connector. Rubber O-rings and front-mounted compression seal to further protect your connection.
- For non-molded assemblies, we offer:
- OEM cable connector products (USB, RF, Circular, and D-sub) that use different waterproofing technologies.
- Back-filling connectors with potting.
- Bulkhead-mounted connectors that seal against the panel to IP levels.
Design Process
We begin with understanding your specific application requirements. Also, we collaborate closely with clients to develop prototypes, ensuring the product meets performance and durability needs in harsh environments.
Customizations
We offer tailored cable assemblies with desired cable lengths, waterproof connectors, and unique cable insulation types to match your needs, whether for industrial, automotive, or outdoor applications.
Safety Testing
Products will be tested and proven in a 120m submersion test for 24 hours and meet all industry standards for reliable performance.
Flexible Order Quantities
We accommodate small batches for prototyping and larger orders for mass production, offering flexibility to suit every phase of your project’s development, from initial testing to full-scale manufacturing.
Quality and Safety, Guaranteed
At Wiringo, we ensure that all our products meet rigorous quality and safety standards through extensive testing and compliance with international certifications.
What Our Customers Are Saying
Our customers appreciate Wiringo for its reliable, high-quality, and water-resistant products.
I have received an shipment of the cables that was supplied (p/o : 5130903714 )
I would like to say thanks you , to you and your staff ( factory ) well done.
I am very happy with the quality of the work, ( C )
Thank you very much for your hot support and efforts for our parts supply.
We received your DC cables with thanks a lot.
All parts passed inspection successfully!
Lead Engineer
I just received the cables. Once again, we are very pleased with the results. We are also looking forward to further cooperation in the future.
Please take care.
I could not ask for anything better in terms of quality since everything arrived in perfect condition.
Thank you very much and I look forward to future projects with Wiringo.
Thanks again for Wiringo's hard work in making this project a success.
Frequently Asked Questions
What IP rating do your waterproof cable assemblies have?
Our waterproof cable assemblies come with various IP ratings, such as IP67 and IP68, to ensure reliable performance in harsh environments, offering protection against water and dust ingress.
What should I consider when designing a waterproof wiring harness?
Consider the following when designing a waterproof wiring harness:
- Semi-encapsulated or rough winding
- Connectors with proper waterproofing, such as waterproof rubber sealing plugs
- Sealing with a heat shrink tube between the wiring harness inline and grounding points
- Proper installation of your wiring harness
Can I get a sample of a waterproof cable assembly before placing a bulk order?
Yes, we offer sample orders for customers to test the product's fit and performance before committing to larger orders. This ensures you get precisely what you need for your application.
Choose Wiringo’s Waterproof Cable Assemblies
Our IP-rated cable assemblies are manufactured to withstand the harshest environments, exceeding industry standards. Request a Quote.
