Custom Coaxial Cable​​

A complete solution for RF cables and Order custom RF coaxial cable assemblies online!

Production capacity:

  • Custom made cables and networking products, flexible or semi-rigid,
  • Automatic cut and strip for coaxial cabling, compliant with ROHS
  • Coaxial cable assemblies catering for data, RF, and video applications can be supplied to your specifications. The range of coaxial connector in use is enormous; the more common types include IPEX、MMCX、MCX、SMB、SMA、FME、CRC9、F、N、TNC、BNC、SL16.
  • All commonly used coaxial cable types are available covering RG1.13、RG178、RG316、RG174、RG58、50-3/-5-7-9、LMR195、RG142

types:

MCX Microax RF Coaxial Connectors

The series of MCX radio frequency joining device is that one kind is since pushed the lock type joining device small-scale; it has a small, light, characteristic with the compact structure. Small-scale electronic equipment or network system that can require volume, weight, and installation way.

MMCX Miniature Microax RF Coaxial Connectors

The series of MMCX radio frequency joining device is a kind of microminiaturized product smaller than MCX. It is small, light, joins convenient and reliable. Use for system volume, serious about having small-scale communication, network equipment that requires joining the coaxial cable of the radio frequency extensively.

SMA Sub Miniature RF Coaxial Connectors

Series of SMA products one application extensive small-scale coaxial person who joins that whorl join, it has a reliable characteristic with long life-span that the width, performance is excellent, high frequency. Suitable for the digital communication system's microwave equipment and body and join the body in the cable or the microstrip line frequently in the loop.

SMB Miniature RF Coaxial Connectors

The series of SMB products is that one kind push the locking type joining, it has small, light, electric performance is a fine characteristic easy to use. Suitable for joining the coaxial cable of the radio frequency to use in the radio equipment and radio frequency loop of the electron tube instrument.

N Series RF Coaxial Connectors

Power person who joins in what series of N products join by one whorl has the characteristic of reliable and strong anti-vibration nature, machinery, and electric performance finely. It is used in vibration and environment abominable radio equipment of terms and instruments, and the ground launch systems join the coaxial cable of the radio frequency extensively.

F Series RF Coaxial Connectors

F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, It can already be used for having the impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl, the price is suitable. F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.

SMB Miniature RF Coaxial Connectors

The series of SMB products is that one kind push the locking type joining, it has small, light, electric performance is a fine characteristic easy to use. Suitable for joining the coaxial cable of the radio frequency to use in the radio equipment and radio frequency loop of the electron tube instrument.

N Series RF Coaxial Connectors

Power person who joins in what series of N products join by one whorl has the characteristic of reliable and strong anti-vibration nature, machinery, and electric performance finely. It is used in vibration and environment abominable radio equipment of terms and instruments, and the ground launch systems join the coaxial cable of the radio frequency extensively.

F Series RF Coaxial Connectors

F type joining devices use for 75 Ω cable assign system, especially CATV, broadcast television network, It can already be used for having the impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl, the price is suitable. F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.

FQAs about Coax Cable:

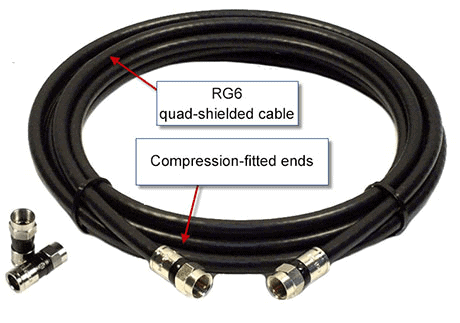

The RG designation stands for Radio Guide and RG6 cable is one of the most commonly used coax cables. There are three reasons to use this coax cable: its larger conductors, which provide better signal quality; thicker dielectric insulation that handles GHz-level signals more effectively; and thinner size with easy installation options in walls or ceilings.

Cloom has RG6 cable with excellent performance: double or quad shields (depending on your needs) to reduce outside interference; 75 ohms impedance which reduces signal loss over long distances.

Center conductor——The copper wire or the steel-copper conductor is what transmits a signal to your TV. If you want a stiff cable that will not break, then go with one that has stiffer wires so they are less likely to bend which would result in lost signals along its length making them weaker over time.

Dielectric insulator——The whole point of this design is to let the signal flow through but not any other electricity. The inside wire has a dielectric insulator surrounding it and then an outer conductor, which shields the inner one from interference by electrical currents that move in adjacent surfaces around it.

Outer conductor——You’ve likely seen the yellow, black, and white RG6 coaxial cable in a home’s television setup. The outer conductor of this type of cable is also known as the “foil shields” or “braided shield.” It is the durable, protective, and conductive shield of a coaxial cable that provides shielding from electromagnetic interference on coaxial cable lines.

Outer layer——The final layer on a coaxial cable is a PVC jacket that protects the electrical cable from water and dirt, allowing coaxial cable suitable for outdoor or indoor use. Outdoor applications may require protection against UV light oxidation or rodent damage while some versions are designed to resist direct burial. However, some internal applications may omit the insulation jacket.

Connectors——Coaxial cable connectors are used to connect cables to other devices and maintain the cable’s shielding. F-type connectors are the most common. They’re used with RG6 coaxial cable and RG11 to make a cable connection for cable televisions, cable modems, VCRs, satellite receivers, cable boxes, digital routers, TV antenna cable, or other devices with F-type coaxial port. F-type connectors come in two types: twist-on and crimp. Twist-on connectors don’t create as high a quality of connection as the crimp style.

Male connectors have a protruding wire, while female connectors are equipped with space for the center wire to tuck into.
The cable tv system is the most popular form of television in America. Cable TV systems are made up of cable signal, which is transmitted through a coaxial connection. This type of system requires the installation and use of an outside antenna to pick up its signals from commercial radio broadcast towers in order for it to work correctly.
The transmission speed of the coaxial cable is 10Mbps (megabits per second), and they offer 80 times more transmission capacity than twisted-pair cables. Coaxial Cable is an excellent choice when you need to connect your modem to an external source that is a bit distant from your home.
Gold-plated connectors provide optimal connections, reducing signal loss from the signal split while resisting rust and corrosion.
Paypal, Bank transfer,Western union, Money gram

We offer you an excellent choice of quality coaxial cable without electromagnetic interference & radio frequency interference. A key to coaxial cable design is tight control of cable dimensions and materials. With layers of aluminum shielding and a solid-core copper conductor, our high-quality cable has excellent resistance to electromagnetic interference, so it’s a solid choice for longer runs of up to 25 feet.

If you live in a densely populated area, consider using a coaxial cable with quad shielding/quad shields to protect your signal quality from the surrounding interference.
