What Is an HVAC Wiring Harness ?
An HVAC wiring harness groups the individual wires of a heating or cooling system into a single, organized assembly. Instead of running and connecting dozens of loose wires one by one, the harness bundles them into one pre-built unit that links the system’s controls, sensors, motors, and power components.
That bundling does two things. It simplifies installation — one harness drops into place instead of a tangle of separate leads — and it ensures consistency from one unit to the next, so every system off the line is wired the same way. For OEMs building at volume, that repeatability is what keeps assembly fast and installation errors low.
HVAC harnesses also work hard once installed. They face sustained heat, constant vibration, and long duty cycles, and they’re often routed through tight spaces close to heat sources. That’s why material selection and build quality matter so much: high-temperature insulation, abrasion resistance, and clean terminations are what keep a harness reliable across years of operation rather than failing early in the field.
HVAC Wiring Harness Products
Custom HVAC wiring harnesses built to your unit’s layout, voltage, and connector requirements — from control board harnesses to full OEM assemblies.
Control Board Wiring Harness
Connects the central control board to the unit’s switches, relays, and power inputs.
Motor and Blower Harness
Powers fan, blower, and compressor motors with high-temperature, vibration-resistant leads.
Sensor and Thermostat Harness
Carries low-voltage signals from temperature, pressure, and safety sensors to the controller.
Power Distribution Harness
Routes line and high-voltage power to the unit’s major components.
Custom OEM HVAC Harness
Built to your equipment drawings for proprietary designs and tight routing.

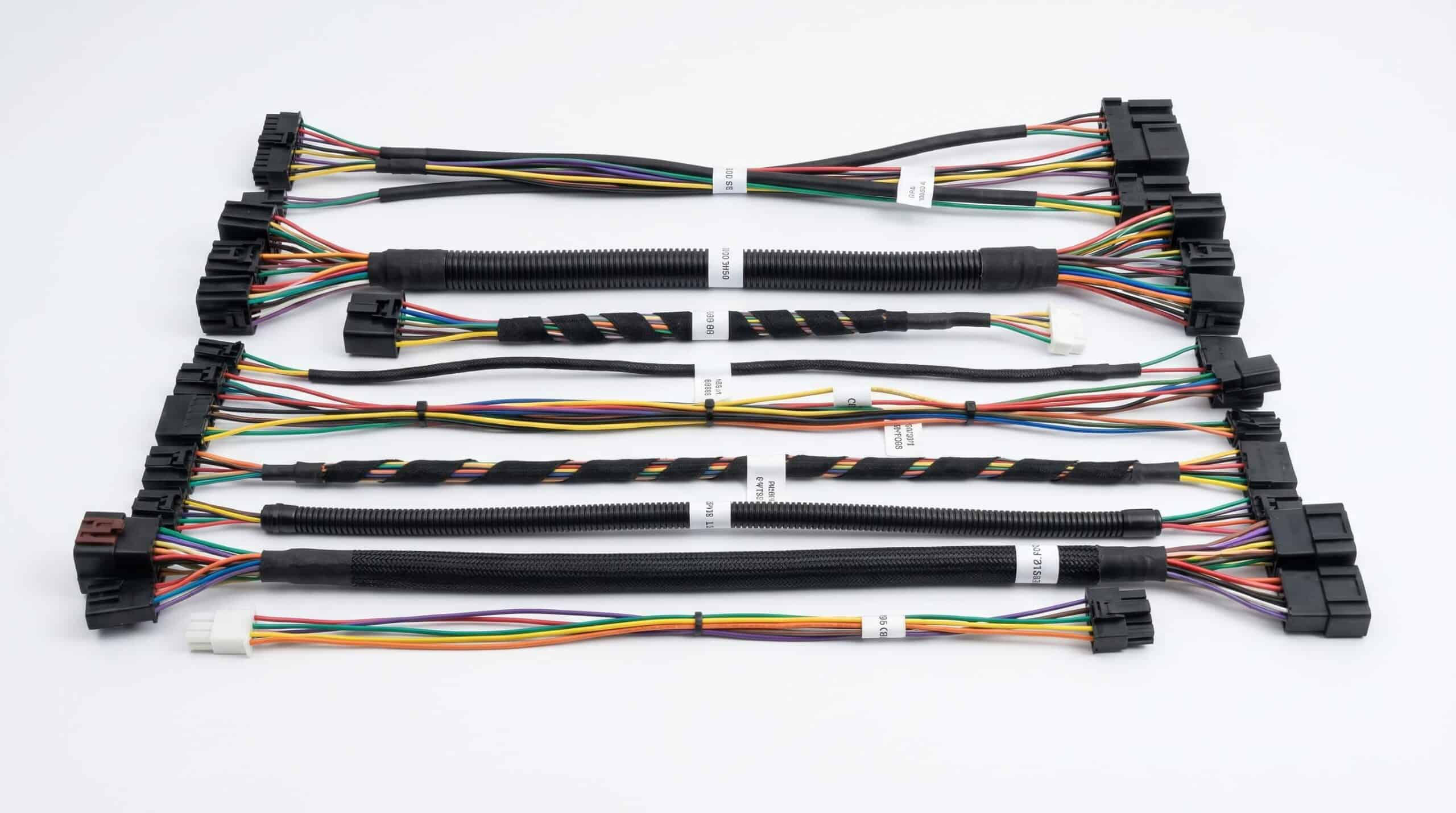

Replacement / Service Harness
Direct-fit harnesses for repair and field replacement of existing units.
Industry Applications
Wiringo HVAC harnesses are built for the full range of heating and cooling equipment, from compact residential units to continuous-duty industrial systems.
Residential and Commercial HVAC Equipment
Wiring harnesses run throughout residential and commercial HVAC units, connecting control boards, motors, sensors, and power components into one organized assembly. Consistent builds simplify assembly on the line and reduce installation errors from one unit to the next.
Industrial Heating and Cooling Systems
Larger industrial systems operate in harsher conditions — higher temperatures and continuous duty cycles that put real stress on wiring. Harnesses for these environments need high-temperature insulation and durable materials that hold up under prolonged exposure.
OEM HVAC Products
Many OEMs depend on custom harnesses built around proprietary equipment designs. Clean routing and accurate terminations matter far more than off-the-shelf compatibility here, so each harness is built to the exact unit it serves.
Quality and Safety, Guaranteed
Every HVAC wiring harness Wiringo builds is produced under our established quality systems, certified to ISO 9001, with documented processes governing each step from build through inspection. Harnesses are checked in production — verifying routing, terminations, and connector seating — and electrical testing such as continuity checks is applied where the application calls for it, so issues are caught before a harness ships.
Why HVAC Manufacturers Choose Wiringo?
Here’s why HVAC manufacturers choose Wiringo as their trusted wiring harness partner.
Built for the Finished Product
We treat each harness as part of a complete HVAC unit, not a standalone part. Understanding how wiring affects the finished product means we build assemblies that support reliable performance in the real system, not just on the bench.
Clear Communication, Consistent Builds
We keep specifications clear and communication direct from the first conversation, so there are no surprises later. Every harness is built to the same standard, giving you consistent results from prototype through full production.
Practical, Real-World Solutions
We design harnesses around how your equipment is actually built and serviced — routing, connector choice, and lengths that work in the real unit rather than only on paper.
Less Rework, Steady Momentum
Clean, accurate builds mean fewer issues at assembly and in the field. That reduces rework and keeps your project moving on schedule.
What Our Customers Are Saying
Have a look at what our customers are saying today about our control cabinets.
I have received an shipment of the cables that was supplied (p/o : 5130903714 )
I would like to say thanks you , to you and your staff ( factory ) well done.
I am very happy with the quality of the work, ( C )
Thank you very much for your hot support and efforts for our parts supply.
We received your DC cables with thanks a lot.
All parts passed inspection successfully!
Lead Engineer
I just received the cables. Once again, we are very pleased with the results. We are also looking forward to further cooperation in the future.
Please take care.
I could not ask for anything better in terms of quality since everything arrived in perfect condition.
Thank you very much and I look forward to future projects with Wiringo.
Thanks again for Wiringo's hard work in making this project a success.
Frequently Asked Questions
Does Wiringo support custom HVAC wiring harness designs?
Yes. Wiringo manufactures custom HVAC wiring harnesses built from your drawings, schematics, or equipment specifications. We configure wire gauge, insulation rating, connector types, lengths, and routing to match your exact unit, so each harness fits the system it's designed for rather than forcing an off-the-shelf part to work.
Can HVAC wiring harnesses be produced in small quantities?
Yes. We support small prototype runs and low-volume orders, which lets you validate a design before committing to larger quantities. As your requirements grow, the same approved build scales to full production, so the harness you tested is the harness you receive at volume.
Are HVAC wiring harnesses tested before shipment?
Yes. Harnesses are inspected and tested before they ship, including continuity checks to confirm correct connections and visual inspection of terminations, routing, and connector seating. Electrical testing is applied where the application calls for it, so issues are caught before the harness leaves our facility.
