Engine Wiring Harness– Repair and Replacement

An engine wiring harness is a group of wires that transmits electricity to various parts of your vehicle. While it may sound complicated, it’s just a small part that can connect your engine to the fuse box. It’s imperative, and if your vehicle is having problems, it could be that your engine wiring harness needs repair or a replacement.

An engine wiring harness can often last the car’s lifetime, but it’s common for things to go wrong. We have everything you need to know concerning your vehicle’s engine wiring harness.

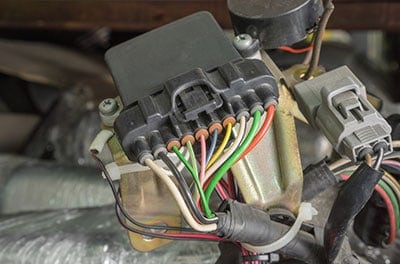

Engine Wiring Harness 1

Get Your Free Sample!

Enjoy a free sample worth UP TO $100!
Explore our custom services now. Email us at [email protected] for more details.

Chapter 1: Why It’s Important to Repair and Replace Your Engine Wiring Harness

Your engine wiring harness is the brain of your vehicle. It controls everything from the airbags to the lights. When the car has problems, there’s a good chance your vehicle won’t run correctly.

Engine Wiring Harness 2

Chapter 2: What is Your Engine Wiring Harness?

An engine wiring harness is how each part of your vehicle gets electricity. It is crucial to help the vehicle run and enjoy the music and tunes you do regularly. It’s just a bundle of cables.

These cables connect the engine to each part of the vehicle that needs electricity. It’s usually made of heat-resistant rubber to handle the high and low temperatures that vehicles often experience.

Engine Wiring Harness 3

Chapter 3: What Does an Engine Wiring Harness Do?

Your vehicle needs more than your engine; it requires a lot of electricity for certain things to function, like your radio or lights.

Beyond that, your battery, starter, and even your alternator run on power provided by the engine. Without an engine wiring harness, you couldn’t start your vehicle. It’s a vital part that many people don’t think about until something seems off or broken.

When this happens, the engine wiring harness could be to blame. Since it’s such a pivotal part of the vehicle, check it often.

However, many people forget to check it in an inspection since most of these parts never experience problems in the vehicle’s lifetime.

Get Your Free Sample!

Enjoy a free sample worth UP TO $100!
Explore our custom services now. Email us at [email protected] for more details.

Chapter 4: How Does the Engine Wiring Harness Work?

There are many cables in the engine wiring harness that work to connect electricity to your vehicle parts. This vehicle part has many sensors that work to ensure that everything in your vehicle is in working order. Some of these major systems in your car are fuel and transmission. When you get a check engine light, you have the engine wiring harness to thank.

It works by using these cables and a fuse box. They were the electricity produced by the engine to the various parts and sensors. It is created using high-temperature plastic or rubber because the engine heats up a lot. That could cause the engine wiring harness to melt over time. And while this is a rare occurrence, it does happen.

Think of this part of the vehicle as the brain. Without it, getting the information, your vehicle needs wouldn’t be possible. It’s always working overtime to relay the data your vehicle needs to function correctly. Whenever a sensor goes off, the engine wiring harness alerts the sensor of the problem.

The exciting thing is that the engine wiring harness grows as vehicles get more advanced. Some say that new cars have over 100 pounds of wires, so imagine how many things could go wrong with that. In the past, there may not have been many issues. However, as things advance, there is more to go wrong.

Chapter 5: Signs to Look For When an Engine Wiring Harness is Broken

Your vehicle is crucial to you, and the engine wiring harness is also essential. It can be hard to diagnose when there is a problem.

However, it could be as simple as a check engine light or another sensor. If you have sensors going off, it may be your wiring harness.

There’s a good chance that if they keep going off and mechanics can’t find the problem, that could be it.

Engine wiring harnesses are made to be extremely durable. Not only are they made of sturdy material, but they are deep within the vehicle’s hood.

However, your car goes through a lot. With constant movement and temperature changes, it takes its toll. Plus, if you’ve been in a vehicle crash, there can also be a lot of damage.

It is familiar with branded titles and retitled vehicles.

While many vehicles may never have an issue, there is a possibility that your car is a lemon. Or, it could be that your vehicle had damage and you didn’t know it.

We can’t see every accident that has happened to a car. Because of this, there could be damage you didn’t know about.

There are some signs if you haven’t been in a collision and you know your vehicle hasn’t either.

The most significant sign is that sensors are going off on your vehicle. Many sensors could be a sign of maintenance issues or something wrong.

Other times, it could signify a faulty engine wiring harness. Other symptoms could be that your vehicle isn’t starting or is slow.

These problems are not usually immediate, and as wires melt or corrode, a gradual decrease in function could occur.

Chapter 6: Repair and Replacement the

There are a few options when it comes to repairing or replacing the engine wiring harness. First, it will depend on your vehicle.

Sometimes, vehicle manufacturers require a full replacement. Other times, the repair is possible.

The new wire can save the existing wiring that’s having problems. It is done for not-so-essential wires, like lights.

Since this wire harness controls everything in the vehicle, safety is important to most mechanics.

Security is still relevant if you’re using an engine wiring harness for something other than a car.

A replacement can be just as easy but may cost a little more. When wires have damage, a repair can help. Maybe a wire is melting a little or starting to peel back.

When that occurs, it’s not a big deal. Sometimes though, the damage is a lot worse. Because your vehicle goes through a lot, the wires may not be in the best shape.

As they erode, melt, or break, they can cause many issues to your vehicle. Thankfully, a replacement can make it as right as new.

Most of the time, wire replacement or repair is the best option. It’s not usually recommended or needed to replace the whole wiring harness, as that would be extremely costly.

Chapter 7: Where to Find Help With Your

Mechanics work on all types of problems, but this problem is unique. People don’t see this issue every day, so it may not be something your local mechanic can help with.

It’s important to call and talk to the mechanic. The first thing they will do is an inspection. If they rule out everything else and find the harness, it will need repair or replacement.

A custom-made wire harness may be the best bet if you’re working on your vehicle. It can have everything you need to improve function and add custom abilities.

You can make the perfect engine according to your prototypes. We’re happy to jump in and help because your dream is our reality.

Chapter 8: The General Cost of Fixing Your Wiring Harness

The general cost of fixing your wiring harness can vary greatly. That is because it may just be one wire or ten wires that need fixing.

It’s hard to get an estimate until you know precisely what you’re dealing with. However, if a mechanic has done enough of these projects, they may give you a general ballpark cost.

Repairs are going to cost much less than a replacement. It’s impossible to know which one you’ll need. Each wiring harness is in a different spot and can be challenging to reach, adding labor costs.

Check with your local mechanics to get a better idea of value. It is something you don’t want to cut corners with.


While engine wiring harnesses may not experience as many problems as other vehicle parts, they are essential. It is the brain of your vehicle, and if not working correctly, it can cause issues.

If you’ve noticed that your car is slow and sluggish, it’s worth it to check it out. You never know if you’re dealing with a wiring harness problem.

Your mechanic can help you decide what is needed. We offer custom cable assemblies to ensure that your vehicle runs smoothly.

We have many different types and pride ourselves on our quality to provide you with the best. If you’d like more info, contact us here.
