JST Connectors: Types, Features and Applications

JST connectors are small plastic components with colorful wires, commonly found in gadgets. They provide reliable connections in compact spaces across consumer electronics and industrial equipment.

JST connectors are versatile due to their many specialized types, each designed for specific voltage, current, and durability requirements. Understanding these types is essential for secure, reliable connections in DIY projects and electronic repairs.

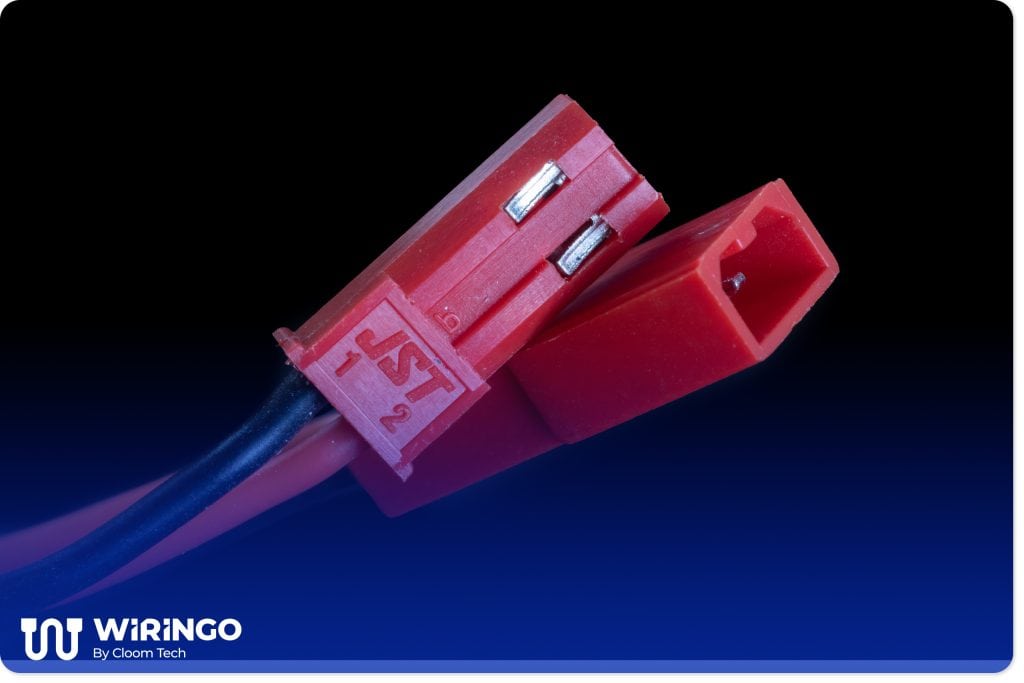

What is a JST Connector?

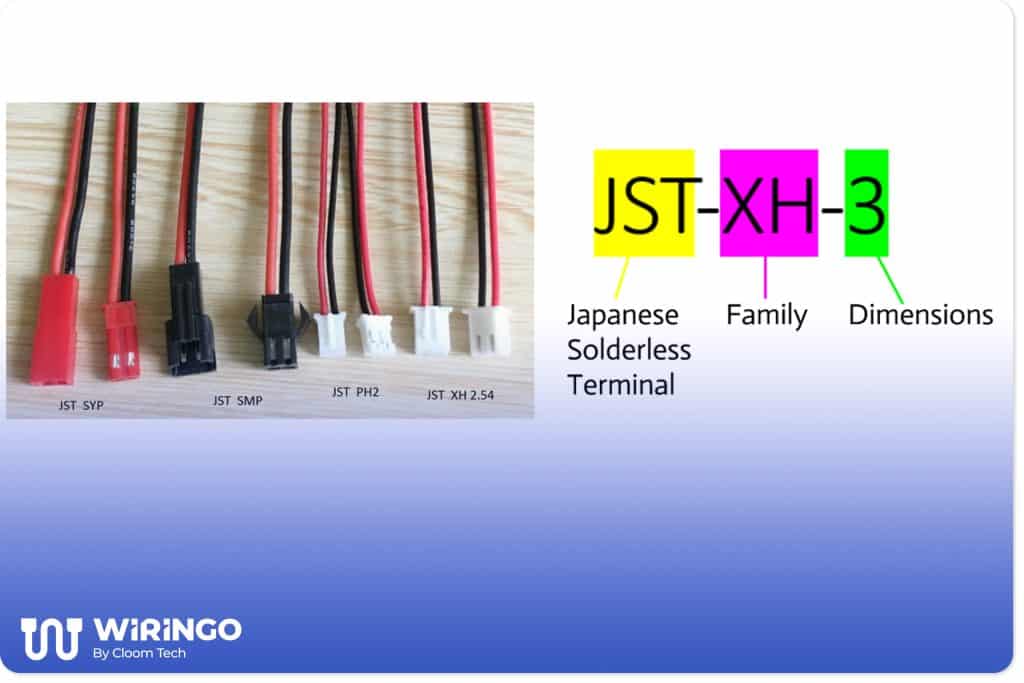

A JST connector (Japan Solderless Terminal) is a family of electrical connectors designed for quick, reliable connections without soldering. Originally developed in Japan, these compact connectors use crimped terminals that snap securely into plastic housings, making them perfect for mass production and DIY projects where durability matters.

JST connectors are common in drones, 3D printers, and laptop battery packs. Their compact size and strong contact pressure ensure secure connections, even with vibration or movement. Despite sharing the JST name, types like PH, XH, and SH are tailored for different wire sizes and power needs.

Unlike soldered joints, JST connectors allow you to disconnect and reuse components, making them a key element in modular electronics. However, it is important not to force mismatched types together, as the small keyed slot ensures each variant fits only its specific counterpart.

JST Connectors Across Various Sectors

JST connectors power modern technology across diverse industries, combining compact design with robust performance for critical wiring solutions.

Consumer Electronics

JST connectors are the lifeblood of portable products today, supplying power and data transfer in smartphones, tablets, and digital cameras. Their small but robust design makes them valuable in today’s ultra-thin products, where they enable stable connections with repeated motion and mechanical stress. Beyond mainstream consumer electronics, they’re increasingly employed on new IoT and smart home devices.

Automotive Electronics

Modern cars contain hundreds of JST connectors used within their electrical systems, from basic lighting circuits to advanced driver-assistance systems (ADAS). JST connectors perform reliably in automotive environments, resisting looseness under constant vibration, temperature changes, and fluid exposure. Their standard design simplifies manufacturing and ensures compatibility across various vehicle subsystems, from infotainment to critical engine controls.

Industrial Control Systems

In factory automation, JST connectors are the bridge between actuators, programmable logic controllers (PLCs), and sensors. Their ability to withstand dust, water, and electromagnetic interference makes JST connectors well-suited for reliable operation in harsh industrial environments. Their modular design also enables quick maintenance and system reconfiguration, helping minimize production downtime in modern manufacturing facilities.

Medical Devices

The medical field depends on specialized JST connectors for critical monitoring equipment and diagnostic devices. These medical-grade versions offer enhanced reliability and often include safety locking mechanisms to prevent accidental disconnection. Their precise engineering maintains signal integrity for sensitive biometric data, while their compact size supports the growing demand for portable and wearable medical technologies.

Pros and Cons of JST Connectors

JST connectors provide valuable advantages for electronic designs, but they also have specific limitations that should be considered.

Pros:

• Space-efficient design: Compact housings and tight pin spacing (as small as 1 mm pitch) address space constraints in modern electronics without sacrificing connection integrity.

• Secure connection systems: Locking features such as friction fits and positive latches provide stable mating, especially in environments with vibration or movement.

• Standardized identification: Color-coded housings and clear series markings make identifying connectors during assembly and maintenance easy.

• Manufacturing-friendly: The solderless terminal system supports automated production and ensures consistent quality in high-volume manufacturing.

• Adaptable performance: Available in multiple variants to support a range of current ratings (typically 2–3A, up to 10A for power types) and temperature ranges from -25°C to +85°C.

Cons:

• Electrical capacity: Standard versions typically support low to moderate current levels, so careful selection is needed for power distribution applications.

• Series specificity: Each JST series uses unique housings and terminal sizes, requiring precise matching during the design phase to ensure compatibility.

• Installation requirements: Proper assembly requires specific crimping tools to meet performance standards, which may add complexity to production or repairs.

• Environmental considerations: Basic models may need added protection when used in environments with moisture, dust, or chemicals.

• Quality assurance: Non-genuine connectors on the market may fall short of original material and performance standards, posing potential reliability risks.

Types of JST Connectors

Below is a detailed look at the most common JST connector types and their typical uses.

JST PH Series

The PH series is one of JST’s best-selling 2.0mm pitch connectors, with a small size and friction-lock feature. Rated 2A current and 100V voltage, the connectors are extensively used in consumer products like digital cameras, handheld game consoles, and battery connectors for drone and RC car applications. Their small size also allows them to be used in space-limited PCB interconnects.

JST XH Series

The XH series is known for its 2.5mm pitch and secure latch mechanism and offers reliable connections in vibrating environments. Rated for 3A and 250V, these connectors are popular in 3D printer wiring (control boards and end stops), small appliance power distribution, and automotive dashboard electronics. The positive latch ensures stable mating where vibration resistance is crucial.

JST SH Series

The SH series features a compact 1.0mm pitch, the smallest in the JST lineup. Rated for 1A and 50V, these micro-connectors are ideal for wearables, medical sensors, and space-constrained PCBs. Their friction-lock design ensures reliable connections in miniature devices.

JST EH Series

The EH series offers a durable 2.5mm pitch solution, similar to the XH series but with greater strength. With a 3A, 250V rating, it’s commonly used in power supplies, LED lighting, and industrial control modules. The friction-lock housing ensures stable connections in demanding environments.

JST ZH Series

With a 1.5mm pitch, the ZH series bridges the gap between compact size and reliable performance. These 1A/100V connectors are frequently found in laptop and tablet internal wiring, small robotics, and IoT devices that require slim profiles without sacrificing connection integrity. The design offers a balance between miniaturization and practical current capacity.

JST GH Series

The GH series features an extremely tight 1.25mm pitch for high-density applications. With a 1A current rating and 50V capacity, these connectors are ideal for mobile phone components, compact medical devices, and other space-constrained electronics where board real estate is limited. The friction-lock design ensures stable connections in miniature form factors.

JST VH Series

The VH series is designed for higher power applications and offers a 3.96mm pitch and robust construction. Rated for 10A and 250V, these connectors are commonly used in power tool battery packs, industrial motor controls, and automotive power distribution systems. The positive latch mechanism provides extra security for high-current applications.

JST PA Series

The PA series is a newer 2.0mm pitch alternative to PH connectors with improved ergonomics. With similar 2A/100V ratings, these connectors are found to be used in consumer electronics battery packs, small robotics, and LED strip lighting. The design offers easier handling while maintaining compact dimensions.

JST RCY Series

Featuring a distinctive cylindrical design, the RCY series provides reliable power connections with a 2.5mm pitch. Rated for 3A and 250V, these screw-lock connectors are commonly used in power adapters, RC vehicle battery connections, and audio/video equipment where secure mating is essential.

JST SM Series

The SM series offers IP67-rated waterproof construction, making it ideal for environments where moisture resistance is critical. With a 2.5 mm pitch and a 3A/250V rating, these connectors are well suited for marine electronics, outdoor LED signs, and under-hood automotive applications. A positive latch ensures secure, reliable connections in harsh conditions.

FAQ

1. What are the most common JST connector types?

The most widely used JST series includes PH (2.0mm pitch, general-purpose), XH (2.5mm pitch, latching), SH (1.0mm pitch, ultra-compact), and VH (3.96mm pitch, high-current). Each is designed for specific current ratings and space requirements.

2. Why aren’t JST connectors interchangeable between series?

JST deliberately engineered each series to have varied housings, terminal sizes, and pitches to prevent mismatching. For example, a PH connector (2.0mm pitch) won’t even physically fit an XH receptacle (2.5mm pitch), and its terminals are crimped using different tools. Such specialization ensures excellent electrical and mechanical performance, but it will make you pair the same exact series cautiously while replacing connectors or creating new assemblies.

3. What happens if I exceed the current rating on a JST connector?

Pushing a standard PH connector (rated 2A) beyond its limit can cause terminal overheating, plastic charring, or fire. High temperatures may oxidize terminals, increase resistance, and lead to voltage drops. Use heavier-duty options like the VH series (rated 10A) or other suitable connectors for high-power needs. Always account for ambient temperature and wire gauge, which affect real-world current capacity.

4. Why are specialized crimping tools necessary for JST connectors?

JST terminals require precise crimping to form a gas-tight wire connection and proper insulation grip. Generic pliers can’t achieve this—they often under-crimp (causing intermittent connections) or over-crimp (damaging the terminal). The right tool (like the SN-28B for the PH series) applies controlled force to create reliable terminations that maintain conductivity through vibration and thermal cycling. It’s a worthwhile investment for professional results.

5. How many mating cycles can JST connectors withstand?

While specifications vary by series, most JST connectors are rated for 30-50 full insertion/removal cycles before contact resistance may increase. The limiting factor is usually terminal spring fatigue rather than housing wear. For test equipment or frequently disconnected applications, consider connectors specifically rated for high cycle counts, or design in service loops to minimize unplugging.

6. Are there waterproof JST connectors?

Yes—SM connectors achieve IP67 protection through multiple design features: silicone gaskets seal the housing interface, the latch includes a secondary locking tab, and the terminals have additional strain relief. However, this protection depends on proper assembly – any damage to the gasket or incorrect terminal insertion compromises the rating. They’re ideal for outdoor lighting, marine electronics, or anywhere moisture ingress could cause failures.

7. How can I verify JST connector authenticity?

Several key features can identify quality JST products: clean, precise molding with no flash or sink marks, consistent metal plating (typically bright tin over copper alloy), and laser-etched markings that indicate the series and manufacturer. Counterfeit connectors often have rough edges, uneven plating, or incorrect logos. To ensure authenticity, always buy through JST’s authorized distributor network and be cautious of unusually low prices compared to market standards.

8. Why do some JST series perform better in vibration?

Unlike friction-fit designs, XH and VH connectors use positive latches to lock the housings together physically.JST terminals feature optimized spring geometries that maintain consistent contact pressure during movement. For environments with extreme vibration, such as aerospace applications, choose versions with secondary locking mechanisms or potting options to prevent micro-motion at the termination points.

Do You Need JST Connectors?

JST connectors provide reliable, space-saving connections for various electronic applications. Their standardized designs fit well in compact spaces such as drones, wearables, and PCBs, while offering durability under vibration in automotive and industrial settings.

Choosing the right series is essential, whether you need the ultra-compact SH for small devices or the high-current VH for power applications. Using the proper tools during installation helps ensure long-lasting, dependable performance.

For expert help selecting and sourcing quality JST connectors, Wiringo offers the right solutions and support. We’ll help you find the perfect connectors for your project’s needs.
