Are Wiring Harnesses Universal? Yes and No

Wiring harnesses are everywhere, which can lead to the assumption that they’re all the same. But are wiring harnesses universal? If not, what types are available, what sets them apart, and how do you choose the right one for your device or system?

This guide explores the standardization of wire harnesses, explains why custom solutions are often necessary, and highlights how they differ from universal options.

What are Universal Wiring Harnesses?

Universal, or off-the-shelf, wiring harnesses are designed for a range of applications rather than a specific one. Their availability makes them useful for quick, often temporary, replacements or repairs.

Universal wiring harnesses typically follow a basic structure with standardized components such as long wires, labeled cables, and standard connectors, making them suitable for a wide range of applications. However, installers often need to modify them to fit specific needs. So, are wiring harnesses truly universal? In some cases, yes.

However, because engineers and system designers require flexible power and signal transmission options, harnesses must be adaptable. This makes universal harnesses most useful as a starting point or for temporary solutions.

Pros and Cons of Universal Wiring Harnesses

While universal wiring harnesses have several benefits, they do feature a few drawbacks and disadvantages too. These include:

Pros

• Cost-effective: Because manufacturers mass-produce universal wiring harnesses. And they don’t have to meet ultra-specific or special design requirements, which may require specialized materials and more intensive quality assurance. All these features make universal wiring harnesses less expensive, and these cost savings transfer over to the consumer.
• High availability: Standard wiring harnesses are readily available and are stocked by most suppliers and retailers of electronic equipment and repair goods. This makes them ideal for quick repairs, modifications, and restorations.

Cons

• High potential for incompatibility: Electronic systems are complex, and designing a one-size-fits-all solution is often unrealistic or impossible. Many repair professionals and installers treat universal wiring harnesses as temporary or makeshift fixes. Installing one may require cutting, splicing, or swapping connectors, leading to setups that fail to meet safety standards, especially in applications where reliability is critical.
• High potential for poor installations and safety concerns: The risk of failures and errors increases with each modification you make to the universal wiring harness. Implementing a wiring harness that isn’t strictly designed for a specific use case can introduce additional points of failure, leading to breaks and other electrical issues. In extreme cases, these issues may pose eventual safety risks.
• Time-consuming customizations: Heavy modifications require verification to ensure the wiring harness functions as it should. Customizing, testing, and reworking your wire harness can take much time.

Which Industries Use Universal Wiring Harnesses?

Universal wiring harnesses have found widespread use in the automotive industry. Modern Motor vehicles have wiring systems that often require maintenance and repair. Universal wiring harnesses offer plug-and-play solutions, easing vehicle upkeep for end users.

Car owners can purchase them from third-party retailers without visiting a service center.  Online stores like Amazon feature a variety of wiring harnesses that suit different purposes and requirements. For instance, you can find universal cable assemblies to help connect or integrate your custom audio systems.

The modular nature of universal wiring harnesses makes these systems more manageable. So instead of being forced to replace the entire wiring of a vehicle when something goes wrong, you can just replace a single section.

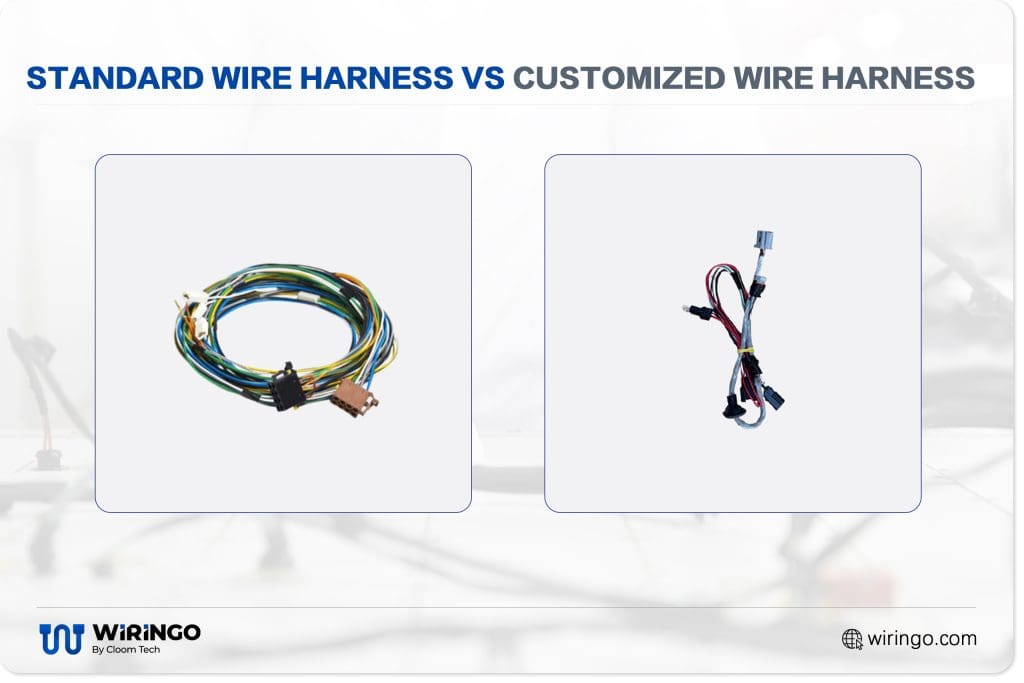

When it Makes Sense to Customize

Your vehicle’s engine control unit (ECU), Advanced Driver Assistance Systems (ADAS), and diagnostics are connected through a complex configuration of cables and wires. These act as the veins and arteries of your vehicle’s electronic systems, responsible for transferring digital and electrical signals.

Customized wire harnesses are cable bundles designed and built to suit these complex systems. The tailoring process makes the harnesses plug and play in the required applications, and it includes picking the most suitable materials and structures to provide maximum durability, performance, and reliability.

Customizable Components

Wires and Cables	Types	General Purpose Thermoplastic (GPT) Wires Thin-Wall Cross-Linked Wires GXL SXL Battery Cables Shielded Wires High Voltage Wires
	Colors	Colored die over white insulation Solid extrusion Striped or feature multiple colors to indicate different circuits
	Gauges	Range from 40 AWG (smallest) to 0000 (4/0) AWG (largest)
	Insulation	PVC Teflon Silicone Polyethylene
Terminals and Connectors	Types	Original Reproductions
	Terminal application	Crimping (manual and automatic) Soldering Screw-on Push-in Insulation displacement Wire wrapping
	Colors	Standard electrical connectors are color-coded based on wire gauge or function. Heavy-duty connectors typically use color to denote the voltage ratings and safety of the wires.
	Materials	Copper and copper alloys Aluminium Nickel and Gold Plating
Covering and Protection	Types	Braided sleeves Heat shrink tubing Corrugated conduitsTape wrapping
Management Components	Grommets	Material (rubber, metal, and plastic) Colors Orientation Size
	Clips	Types Material Color Durometer Placement Orientation
Standard Testing	Types	Visual inspection Continuity testing Insulation resistance testing High voltage (dielectric) testing Functionality testing Mechanical and environmental testing Automated testing
Features and Solutions	Options	Harness fastener locations Break-out positions Wire lengths (at each breakout)Taping locations

Wiringo Can Support Universal and Custom Applications

A universal wiring harness is the best choice if you’re rewiring your vehicle to its original factory configuration. We offer solutions tailored to various years, makes, and models. For vehicles that are mostly factory-original but include specific modifications, we recommend using a modified harness and a conversion harness to support those updates.

Our harnesses are fully assembled and designed for specific vehicle components, such as the dash, engine, interior lighting, brake, and turn signal systems. Each harness can be purchased and installed separately to suit your needs. Their modular design allows easy integration into your vehicle’s electrical system. These plug-and-play solutions closely match the performance of your original harnesses. Contact us for more details.
