Custom Flat Flex Cable (FFC) Assemblies
With over a decade of experience, Wiringo delivers durable, high-quality FFC assemblies made from premium materials and rigorously inspected for performance.
Our Clients

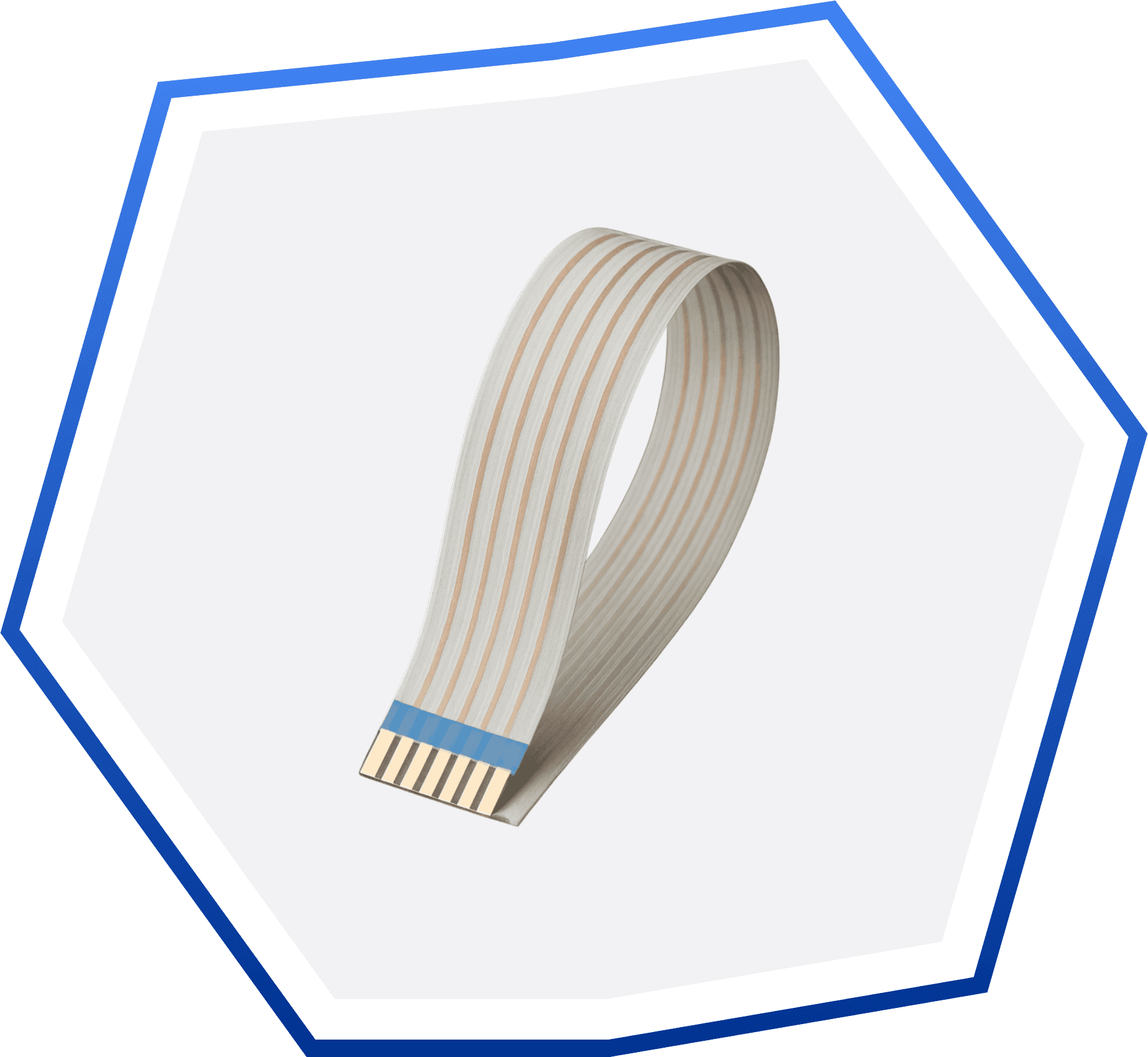

Flat Flexible Cable (FFC), used as a connection between two components in a device, is an electrical cable that resembles a flat, thin ribbon. It can easily fit into the limited or tight spaces of modern devices, such as laptops, digital clocks, scanners, printers, mobile phones, LCD applications, and more. FFC can be nested and routed to form complete wire harnesses.
FFC connectors feature a Zero Insertion Force (ZIF) design that facilitates easy and secure connections. This makes the assembly connection process seamless, reducing the risk of damage to any of the contacts. A locking actuator can be integrated into the design to secure it against mechanical stress.
Products
We can customize FFC cable assembly with overmolded or integrated standard DF9 series connectors, stripped-end connections for direct soldering, or ZIF-compatible connectors.

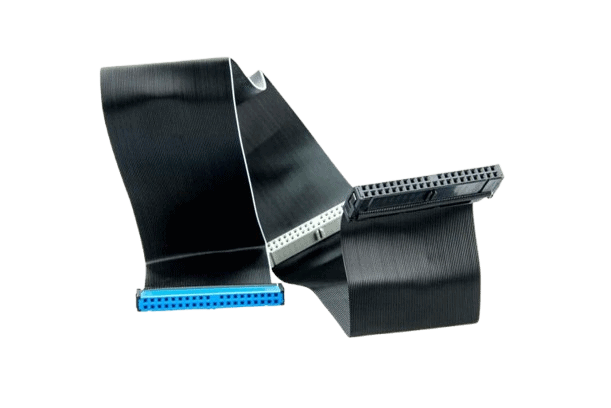

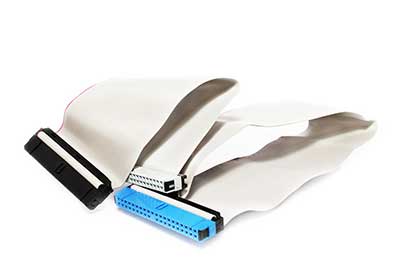

FFC Assemblies with IDC ribbon connector
Leverages Insulation Displacement Connectors (IDCs) for quick, secure insertions and terminations.

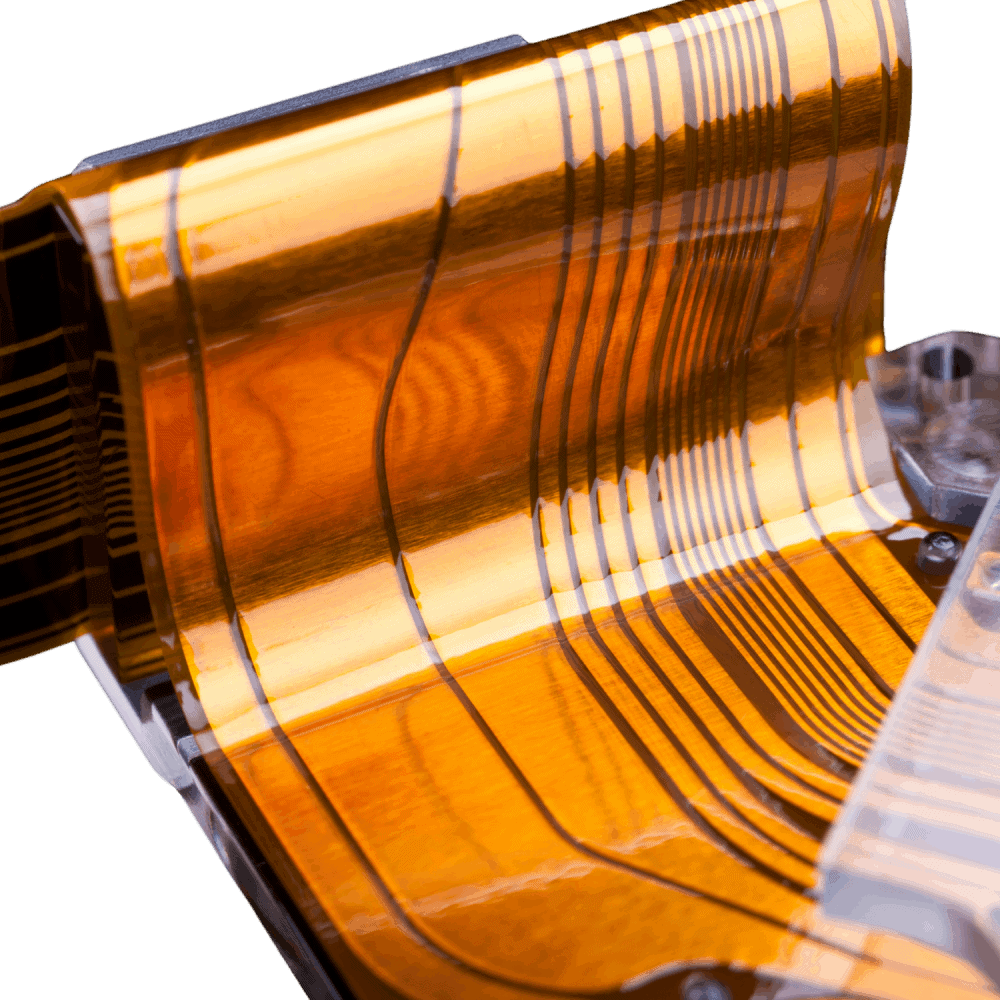

FFC Assemblies with discrete wire connector
Allow for connections to individual wires, making them a versatile solution for industrial equipment, medical devices, and automotive systems.
FFC crimped with receptacle housing
Crimping provides a strong mechanical and electrical bond, making it ideal for high-stress applications.

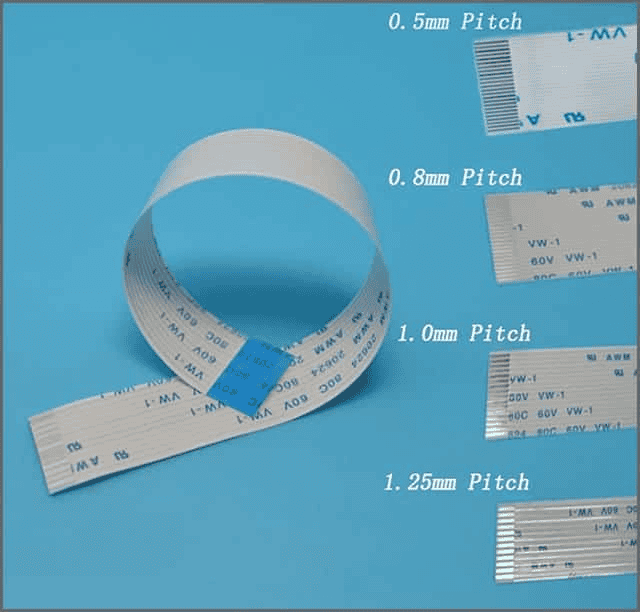

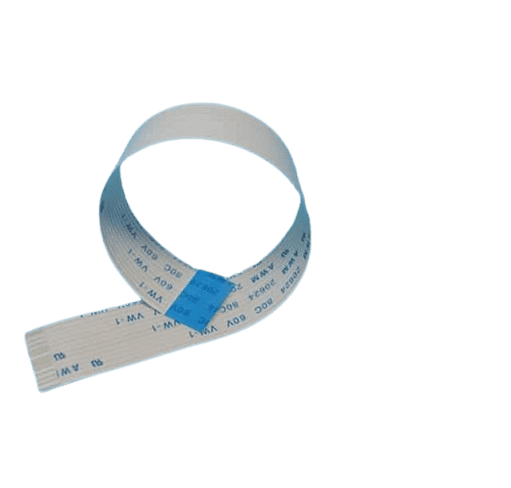

ZIF Style FFC
A versatile, compact, and easy-to-install assembly, best suited for applications with extreme space constraints.

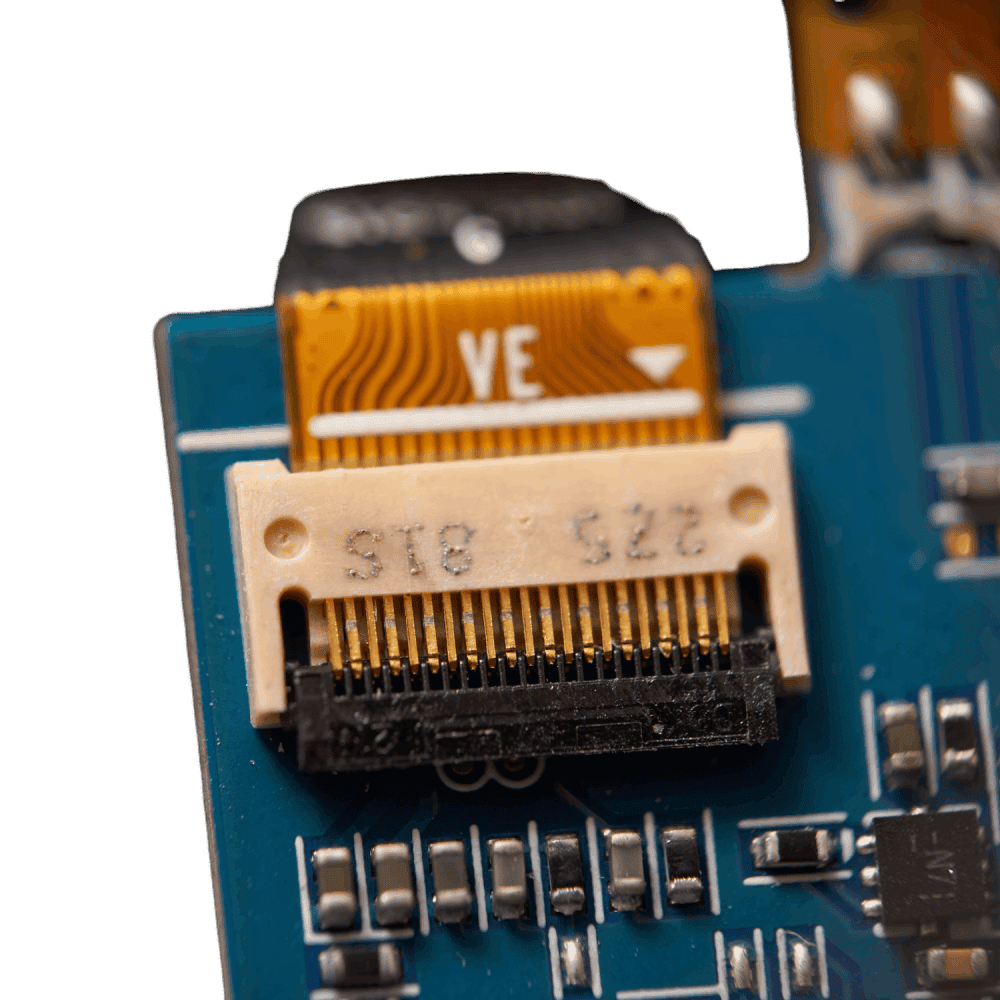

Overmolded flex cable assemblies
Overmolded strain reliefs help reduce mechanical stress and extend its lifespan.

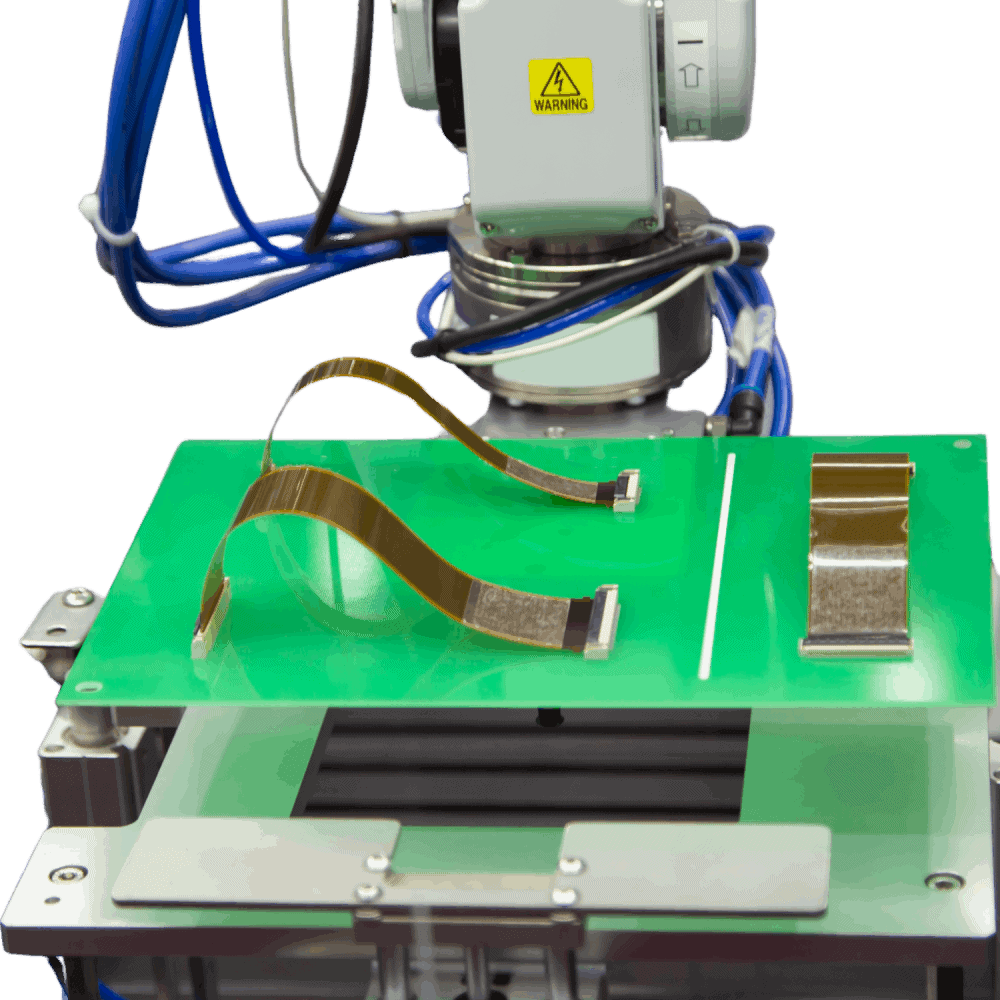

FFC with latch-style receptacle housing
Features a latch mechanism that ensures firm connections and protects against decoupling in high-vibration environments.
Features
Our FFC assemblies are designed to:
- Facilitate reliable connections
- Withstand repeated flexing and bending
- Minimize signal interference
- Simplify installation
They also meet the following specifications:
- REACH, WEEE, and RoHS compliance
- Strict use of UL-listed materials
- Adherence to FPDI-1 and VESA standards
Customization Options
Wiring offers the following customization options:
| Length | Standard lengths (3, 6, 9, and 12 inches)； To your specific and unique length requirements. |
|
| Conductor | Fold | Accordion folds: Enable the cable to expand and collapse, making it ideal for devices with moving or adjustable components. Coil forming: A spiral-like form factor that is best for spring mechanisms like clock springs and sliding drawers. Z-Folds: A space-saving configuration where your FFCs are mechanically folded into a flat Z-like shape. Custom angled folds: Similar to the Z-folds configuration but with more bends, designed to address the space and routing constraints of your device. Heat-formed folds: Each fold is made more precise and set using controlled heat. |
| Pitch | 0.5 mm with 6–80 conductors for more dense connections 1.0 mm with 4–50 conductors for mechanical robustness |
|
| Plating | Flat tin or gold-plated copper conductor | |
| Insulation | Cables are manufactured using UL 20624-certified PET material. On request, we can also provide cables with high-temperature options. |
|
| Shielding/Grounding | Aluminum lamination Silver epoxy for additional protection against EMI A drain wire for OEM projects within product applications |
|
| Strain reliefs | Overmolded Integrated |
|
| Connector | Types | Cable-to-cable configurations; Cable-to-board connections |
| Pinout | One-to-one； Reverse |
|
| Direction | Both out, both in, and/or one out connector directions | |
Industry Applications
Wiringo has manufactured flat flex cables for a range of applications in various industries.
Automotive Systems
FFC assemblies connect dashboard displays, advanced driver-assistance systems, battery management systems, lighting systems, and more. Each use case requires FFC assemblies with varying current-carrying capacities and dimensions.
IoT and Smart Devices
Smartphones and wearable devices depend on miniature, fine-pitched FFCs to function correctly. As the industry continues to evolve and advance, the need for custom, lightweight, and compact cables will only increase.
Robotics
FFC assemblies are perfect for connecting motors and sensors in robotic controls and appendages. In such a motion-based, space-limited application, they are bend-resistant, lightweight, and well-shielded.
Why Choose Wiringo?
Our commitment to providing flexible, tailored solutions has enabled us to assist businesses worldwide in addressing their unique challenges.
Tailored Solutions
We offer an extensive range of customization options and work closely with our clients to ensure that their FFC assemblies meet all performance and design requirements. Whether you’re looking for large productions or small prototyping cycles, Wiringo can easily adapt to your needs.
Advanced Manufacturing Capabilities
Wiringo uses precision technology to manufacture orders quickly and accurately. Our expert engineering team can work with numerous termination styles, connectors, and all types of wires and cables, covering virtually any application.
High-Quality Materials
Wiringo crafts each custom FFC assembly with precision, using high-quality, reliable materials. Our services are affordable, but we never compromise on quality.
Looking for The Best
Custom Wire Harness &
Cable Assembly Service?
Fast Turnaround Time
At Wiringo, we ensure that custom wiring harness solutions are tailored to your needs, with quotations delivered within 12 hours to keep your projects on track.
Certified Quality Assurance
Our factory is ISO9001 and IATF16949 certified, guaranteeing the highest standards of quality, reliability, and compliance for all custom wiring harness and cable assembly services.
One-Stop Custom Solutions
We offer a complete, one-stop solution for all your wiring harness needs, from design to manufacturing, ensuring you get exactly what you need for your project.
We Partner With Top Manufacturers and Suppliers
Our purchasing department uses a global strategy to source quality components from special channels.
Quality and Safety, Guaranteed
We apply strict quality control measures to ensure our services comply with recognized industry standards.
What Our Customers are Saying
Check out what thousands of satisfied clients are saying about Wiringo’s unwavering commitment to quality and customer care.
I have received an shipment of the cables that was supplied (p/o : 5130903714 )
I would like to say thanks you , to you and your staff ( factory ) well done.
I am very happy with the quality of the work, ( C )
Thank you very much for your hot support and efforts for our parts supply.
We received your DC cables with thanks a lot.
All parts passed inspection successfully!
Lead Engineer
I just received the cables. Once again, we are very pleased with the results. We are also looking forward to further cooperation in the future.
Please take care.
I could not ask for anything better in terms of quality since everything arrived in perfect condition.
Thank you very much and I look forward to future projects with Wiringo.
Thanks again for Wiringo's hard work in making this project a success.
Frequently Asked Questions
What is the difference between an FFC and an FPC?
Flat flexible cables (FFCs) provide straightforward single transmission between components, circuits, or devices. In contrast, flexible printed circuits (FPCs) are complete circuits that can be used to process, control, or manipulate digital and electrical signals.
How to determine the required pitch size for an FFC?
You can determine the pitch size by referring to the application requirements. High-density compact designs, such as smartphones, require fine-pitched cables (0.3 to 0.5 mm), while applications that demand higher current-carrying capacity, like industrial equipment, use cables with larger pitch sizes (1.0 mm or greater).
Can I request a sample before placing a bulk order?
Yes, you can request a sample from Wiringo before you finalize your custom FFC bulk order.
What are the lead times for custom assemblies?
Custom FFC assembly lead times can vary based on several factors, including the complexity of the design and material requirements. Custom FFC assemblies tend to have longer lead times than their standard counterparts.
What is the difference between standard and custom FFC assemblies?
Standard FFC assemblies adhere to fixed specifications and are ideal for common applications. In contrast, custom FFC assemblies are tailored to your specific needs, making them suitable for new products and specialized applications.
Choose Wiringo’s Custom Flat Flex
Cable Assembly
Take advantage of our expertise, advanced manufacturing technology, rigorous quality control, extensive customization options, and exceptional customer service.
