DisplayPort Cable- Everything That You Needed To Know In 2019

There are many standards, methods, and devices to transmit video data from source to display. These days, most of the devices are using HDMI and DisplayPort cables.

Today, we are going to talk about everything that involves DisplayPort. We will also understand the difference between HDMI and DisplayPort and how to choose the perfect DisplayPort for your device or project. Whether you want custom DisplayPort cables or waterproof cable assemblies, we provide every cable manufacturing service.

We find these DMI and DisplayPort cables everywhere but have you ever thought about the origin of DisplayPort cables and how DisplayPort cables are manufactured? For better understanding, we have divided the guide into chapters, and each chapter will discuss a specific point about DisplayPort.

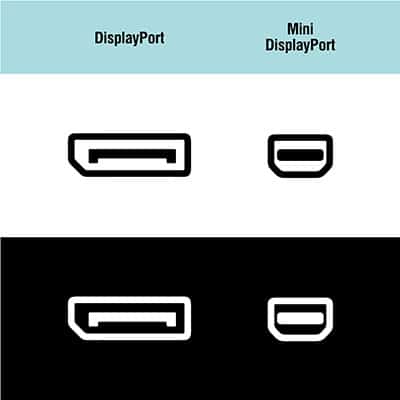

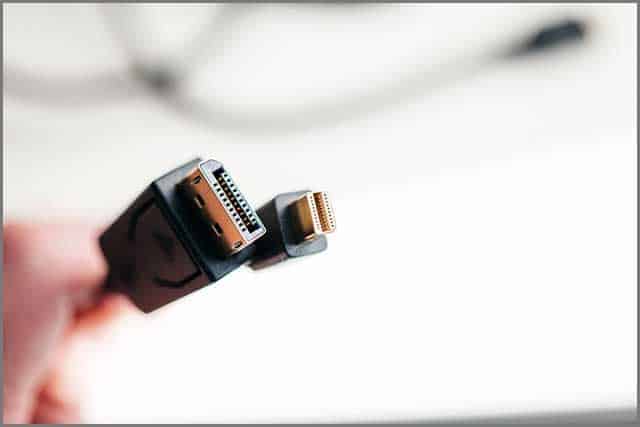

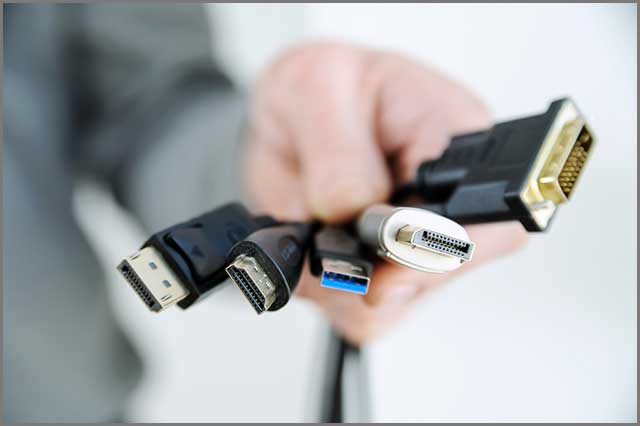

DisplayPort and Mini DisplayPort

Chapter 1: What is Display Port Cable?

Manufacturers and brands are continuously working on the betterment and improvement of the technologies of their products. A few years ago, most devices used VGA cables, and then brands introduced smart display cables like HDMI cables and DisplayPort cables.

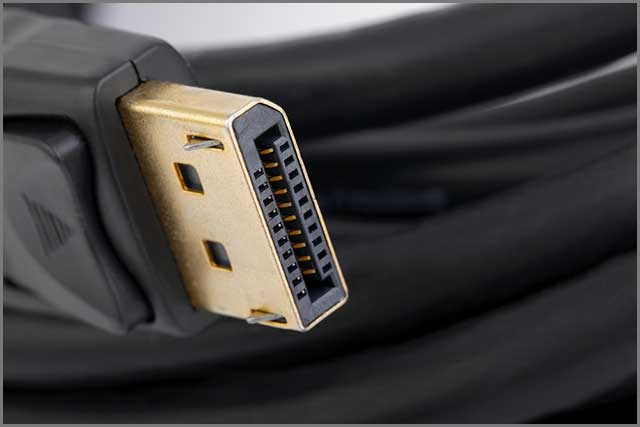

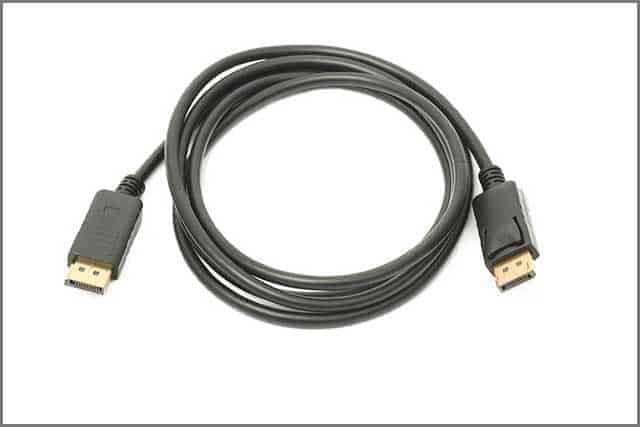

Display cable gold plated connector

DisplayPort is a digital method to transmit video and audio data from the source to the display. We use some specific cables for these types of display options, and those cables are the DisplayPort cables.

According to the Video Electronics Standards Association, Sony, Phillip, and Maxell are some famous brands that introduced DisplayPort to their devices. Most monitors, computers, and other display devices use DisplayPort cables to transmit data from the source to the monitor, LCD, or any other display device.

The essential purpose of the DisplayPort cables was to replace the old methods and adapters with relatively newer and smarter methods. Many devices using VGA, DVI, and other early display options are now using DisplayPort cables for the transmission.

Where do we use Display Port Cables?

This chapter will cover the basics of DisplayPort cables that every reader must know. Most people may think that this guide is not for them but believe me. We all have electronic devices in our homes and offices, and things can get messy anytime with your device. If something is wrong with your adaptor or display cable, you should be able to buy the right wire on your own. You cannot hire a professional to take care of even every small cable. If something goes wrong with your DisplayPort, you will be able to make the right purchase after reading this guide about DisplayPort cables.

So, have you ever noticed that most display devices use smart cables, but some still use thick and traditional pin adapters? Let’s have a look at which devices are using DisplayPort cables these days. Most of the high-resolution display devices use DisplayPort cables, and some other devices use DisplayPort cables like:

  • 4K Screens
  • Laptops
  • Monitors
  • Televisions
  • Projectors
  • Custom devices

Suppose you have DisplayPort cables and want to use any different port with these DisplayPort cables. There are many adapters and extensions available that you can use to convert HDMI to DisplayPort.

History of Display Port Cables

VGA cables were great for standard display transmission. However, with technology improvement, the devices needed better display cables to ensure higher resolution with fewer pins. Manufacturers introduced DisplayPort cables to the market as the first display interface that was using packetized data transmission. The data transmission is carried out by using small packets of the data, and these little packets are the micro packets in terms of technology. The same packetized data transmission technology is available in USB ports, Ethernet, and PCI express.

Most of the display methods were able to carry video data, and for audio data, the different interface was there in the devices. Moreover, to improve the display and audio data quality, DisplayPort cables can carry both simultaneously.

Chapter 2: DisplayPort cableDisplayPort Cable and Connectors Overview

In this chapter, we are going to talk about the technical stuff about DisplayPort cables. There are different types of connectors and cables for DisplayPort. We have divided these points into various sub-headings for better understanding.

Features and compatibility

All DisplayPort devices support DisplayPort cables. The version or the certification of the DisplayPort does not affect the compatibility of the DisplayPort cable.

Mini DisplayPort and DisplayPort cables

All the available functions and features of any DisplayPort device will be operable with all DisplayPort cables. The cable design, wiring, and the layout of the pins are approximately the same for all the DisplayPort connectors, so all the DisplayPort cables support features like video, audio, and data transmission. The transmission speed for different wires can vary depending upon the quality and length of the cable.

Cable length

There are no limitations for the maximum length of the DisplayPort cables. There are resolution limitations that all the wires must meet. If we cross the length of 2 meters for any DisplayPort cable, the quality can vary.

Certification and cable bandwidth

Although DisplayPort cables are the top choice for high-resolution transmission, not all the wires deliver high quality. The manufacturers must submit the DisplayPort cable to VESA for certification depending upon the quality of the cable. The bandwidth values can also vary depending upon the quality of the cable.

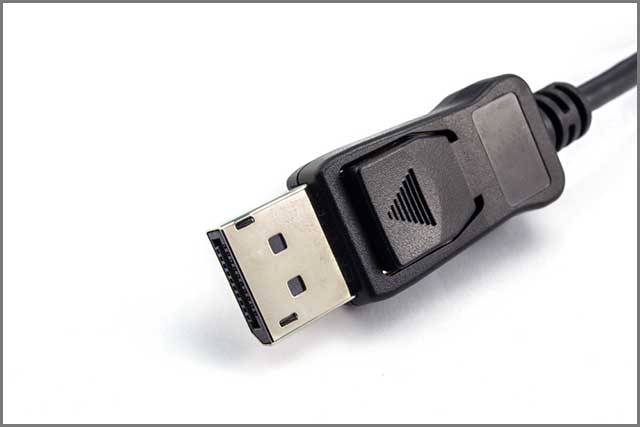

display port cable with grip

Connectors and pin configuration

There are two types of connectors for DisplayPort cables.

  • Full-sized connector
  • Mini DisplayPort connector

The DisplayPort connectors can vary in terms of physical shape and design. The functions remain the same for all types of connectors regardless of their design and size. If you use a mini connector, it will not affect the features or quality of the transmission.

Here are some main connectors and pin configurations for DisplayPort cables.

  • 12 pins for the main link
  • One pin for HPD
  • Three pins for the auxiliary channel
  • Two additional ground pins
  • Two pins for power

Chapter 3: DisplayPort cableDisplay Port Cable vs. HDMI Cable

VGA cable has become the story of the past. However, many devices are still using VGA cables. If we compare the VGA cables with HDMI or DisplayPort cables, most devices don’t support VGA cables these days. So, the primary race is between DisplayPort cables and HDMI cables. If you want to know more about VGA cables and choose the right VGA cable, you can see other articles on our site.

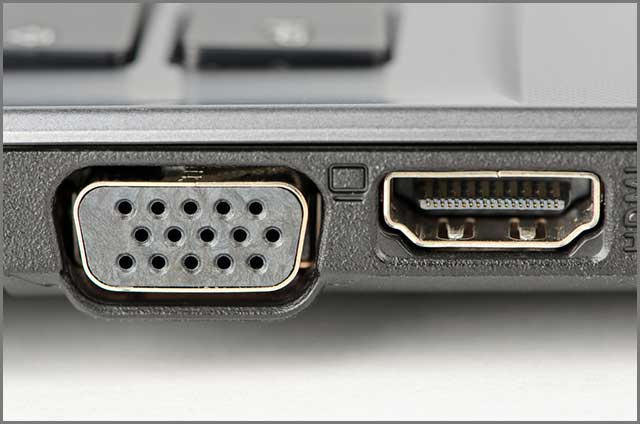

Sockets HDMI and DisplayPort of the laptop

In this guide, we are going to compare HDMI with DisplayPort cables. Which display option is better, and which method provided better graphics. We are going to go through the entire question that may arise in the reader’s mind.

DisplayPort cable–HDMI

In 2003, top manufacturers decided to introduce a new display interface for their devices. Brands like Sony, Phillip, and Panasonic introduced the HDMI display adapters to the market. Today, most devices use HDMI as a standard display method.

DisplayPort cable–DisplayPort

After a few years of HDMI, brands introduced another improved replacement for DVI and VGA cables. So in 2006, DisplayPort replaced VGA and DVI display interfaces.

In this chapter, we are going to compare HDMI and DisplayPort. We will see which option is better and how you can make the right choice for your purchase.

1. Connectors: HDMI vs. DisplayPort

HDMI: Generally, HDMI connectors come with 19 pins, and there are five different shapes of these HDMI cables. Out of 5, only three shapes are widely available in the market, and you might have seen one of these three great shapes. There are connectors like Type a, Type C, and Type D.

There is another type of HDMI connector that comes with 29 pins. This type of HDMI is rarely seen in home applications. This type of HDMI connector mostly comes in the device that uses dual-link applications.

Type E of HDMI connectors have a locking tab, and this type of HDMI cable is suitable for automobile applications where we need a firm grip on the devices.

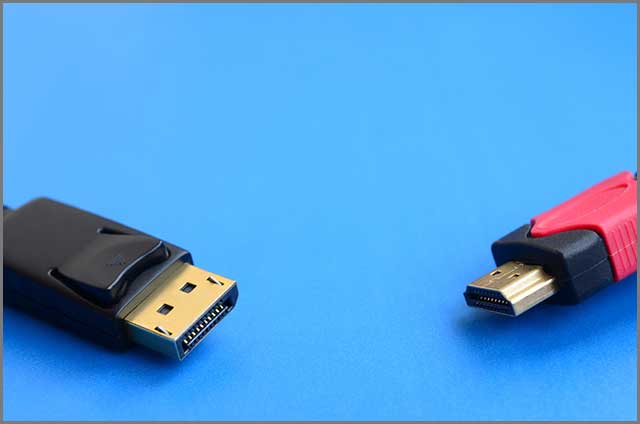

DisplayPort: Our main focus is DisplayPort cables, and the DisplayPort connector generally uses 20 pins. There are two common sizes available for DisplayPort connectors. The standard DisplayPort connector is the normal-sized connector, and many other brands are manufacturing these connectors, but there is another mini version.

The mini DisplayPort connectors are the product of Apple and are called DisplayPort. All the DisplayPort connectors have some locking feature that allows better grip and connectivity. This feature provides better security against accidental disconnection. This feature is available in most devices, but the original description of the DisplayPort connectors does not demand this feature.

2. DisplayPort cableResolution and Bandwidth: HDMI vs. DisplayPort

Most of the DisplayPort cables support the UHD display with a resolution of 3840 x 2160 pixels. The refresh rate for the resolution is 60 HZ. This resolution is also known as 4K, but the movie industry has a different resolution for the 4K display. DisplayPort cables support all types of high-resolution video formats, including 3-D too. The value of maximum bandwidth for DisplayPort is 17.28 GBps.

The most commonly available HDMI supports the resolution that is the same as the DisplayPort cable. However, for HDMI, the refresh rate is lower than DisplayPort, and the refresh rate for HDMI is 30 HZ. The value of maximum bandwidth is 10.2 GBps, and that is also lower than the DisplayPort.

3.DisplayPort cableCable Length: HDMI vs. DisplayPort

There are many different standards for HDMI cables that are available in the market. High-Speed certification is the typically possible standard that is available in the market. Due to quality differences, many low-quality cables too can cost less money but don’t deliver the desired results. You can face glitches and artifacts with these cables that can disturb the video quality.

There is no definite standard for the maximum length of HDMI cables. The standards generally focus on the quality, and you can derive the recommended length from there. Most of the HDMI cables are very short in length. In the case of projectors, the length of the HDMI cable can vary from short to 2 meters. If you want to use HDMI for long-distance, you can use a signal booster to lower the transmission quality. You must know that you can also use CAT 5 and CAT 6 cables to carry the HDMI signals.

The resolution of the DisplayPort cable can vary for different lengths of the wire. If you want to use DisplayPort cables for up to 15 meters, you can use the 1080p resolution only.

Display Port Cable- First choice

HDMI seems like a decent choice for most cases, but if you want to enjoy high resolution without affecting the quality, DisplayPort cables must be your first choice. There are many great features of DisplayPort that are better than HDMI, so there is no reason not to make DisplayPort your first choice.

What kind of cable do you need?

The perfect DisplayPort cable must be within your budget limits. Moreover, if you want to use it for high-resolution devices like UHD screens, make sure you buy the right DisplayPort cable. So that can support your desired resolution.

It would help if you also considered the distance between the source and the display device to buy the perfect DisplayPort cable. If you purchase the extra-long cord, it can also disturb the video quality of the transmission.

Chapter 4: DisplayPort cableHow to choose perfect Display Port Cable?

Choosing the right DisplayPort cable is more comfortable than said. The above chapters have covered everything you need to know about the DisplayPort cables’ working, types, and sizes. This chapter will focus on some tips that you need to keep in mind while buying DisplayPort cables.

DisplayPort cable–Price of the cable is not the quality standard

Many users think that if something is expensive, it must be good. However, this does not work for DisplayPort cables. The quality of the DisplayPort cable does not depend upon the price. If you want to buy a long DisplayPort cable, the price is going to be high. However, it does not mean that the quality will also be useful for that cable.

If you want to determine the quality of the DisplayPort cable, you should look for supported resolution and bandwidth instead of price.

Connector and cable type

As you know, there are different types of connectors for DisplayPort cable, so you must know which kind of cable you will buy for the right device. If your device uses a mini connector, make sure you purchase the right DisplayPort cable that supports mini connectors.

Chapter 5: DisplayPort cablewhere to buy DisplayPort Cable?

This chapter will introduce you to one of the best engineering companies to create fantastic DisplayPort cables for your home or office appliances. Once you know the type of wire you want to buy, you can buy it from any trusted electronics store.

These DisplayPort cables are available in all electronic stores, and you can purchase these cables from online stores. At CLOOM Tech, we are dealing will all kinds of customized DisplayPort cables and other cable assemblies.

Chapter 6: DisplayPort cableCustom DisplayPort Cable By Cloom Tech

If you want to buy a regular DisplayPort cable for your home or office, you can purchase these cables from any store. However, if you have a special setup and these typical cables are unsuitable for your arrangements, you can contact CLOOM Tech for customized DisplayPort cables. We are an engineering firm dealing with all kinds of customized cable manufacturing.

Suppose you have custom requirements for DisplayPort cable and want a professional team to care for your DisplayPort cable needs. You can contact us at CLOOM Tech, and our engineering team will develop customized DisplayPort cables for your project as per your requirements.

No matter what kind of DisplayPort cables you want, CLOOM Tech provides expert customized solutions at the home and industrial levels.

Why do you need custom display port cable?

If you can buy DisplayPort cables from any store, why do you need an engineering firm for customized DisplayPort cables? That is a common question that can arise in every reader’s mind.

Most of the typical DisplayPort cables come with a specific length. If you have set up and device arrangement that requires DisplayPort cables with a particular length, you cannot find those lengths in the market. In such cases, engineering firms like CLOOM Tech can produce high-quality customized DisplayPort cable for your project.

DisplayPort cable–Conclusion

When it comes to the customized DisplayPort cables, you can contact us to discuss your project further. Our team will create a perfect plan for your project as per your needs and requirements. In any project that involves a display device, the DisplayPort cables can be an integral part of that arrangement. The success of any project depends upon all the components, so you cannot ignore the importance of DisplayPort cables in any device arrangement. If you have any queries or want to discuss the scope of your needs regarding DisplayPort cables, visit our website right now.
