Custom XLR Cable: What You Need To Know

Custom XLR cable are essential when it comes to industries. Many industries make use of this cable for various reasons. Since this is true, you must understand how to make it yourself to save cost.

If you have the skills required to connect the XLR cables, it’s straightforward to build your design to suit your needs. Cloom Tech is an organization with a well-renowned international presence; You can also contact us to customize the XLR Cable.

This book contains the information you need to build your XLR cables. All you need to do is follow the instruction and enjoy the perfect XLR cable for your desires.

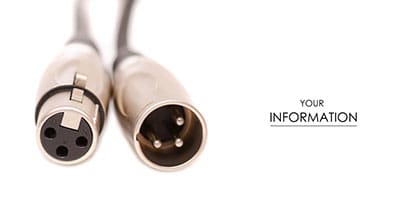

Custom XLR Cable 1

Get Your Free Sample!

Enjoy a free sample worth UP TO $100!
Explore our custom services now. Email us at [email protected] for more details.

Chapter 1: XLR cable

XLR cables are balanced cables with three conductors the negative, positive, and ground signals. The first connector pin is known as the ground in the three connectors. The second connector pin is positive, while the third is negative.

The way the connector pins work is that the second and third connector pins, which are the positive and negative signals, work in various capacities.

When both connector pins connect to the cable, they link to the first connector pin and the ground signal.

Custom XLR Cable 2

Get Your Free Sample!

Enjoy a free sample worth UP TO $100!
Explore our custom services now. Email us at [email protected] for more details.

Chapter 2: Building Custom XLR Cable

It is quite a task to build XLR cables, especially for individuals who are new to them. It requires a lot of effort and good material to carry out the process.

When the person building the cable makes any mistake, it is expensive to replace the damaged material.

The trick to avoiding any unpleasant circumstance is to do what is right, follow instructions and use the correct type of material.

The best way to go about it is to use a soldering iron suitable for the job you want to carry out.

Tools needed for building XLR cables

There are quite a handful of tools required for building XLR cables. They include:

  • Lighter

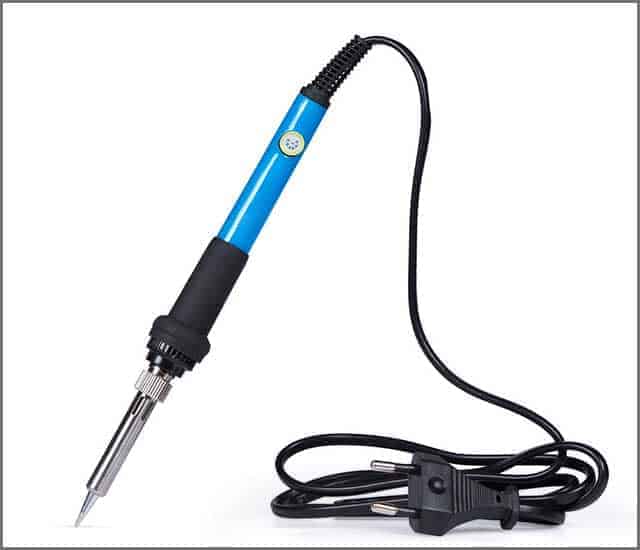

  • Soldering iron
  • Cutters

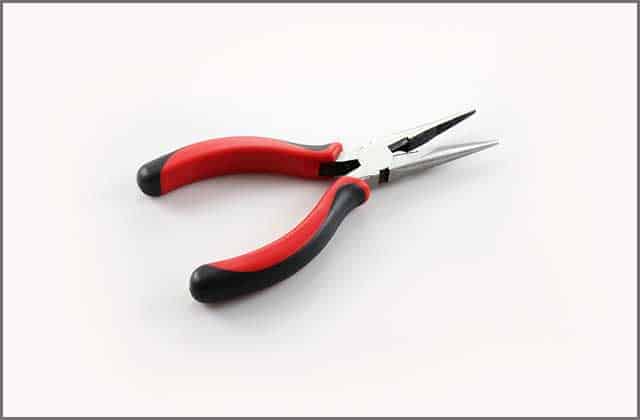

  • Needle nose pliers
Custom XLR Cable 3
  • Hand tool
  • Knife

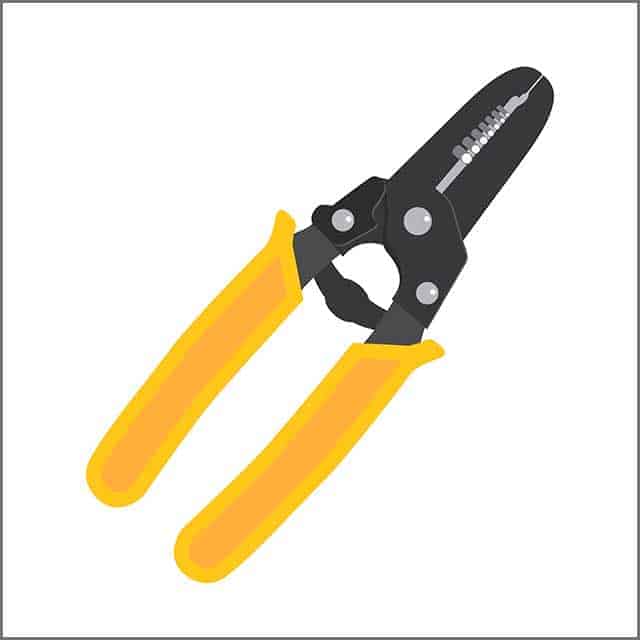

  • Wire stripper

 Materials needed for building XLR cable

  • Cable. Examples are Canare, Belden, Mogami
  • Heat shrink
  • Neutrik XLR connector
  • Solder

Chapter 3: Processes of building Custom XLR Cable

The process of building an XLR cable is an enjoyable task. It is easy to construct using these simple-to-follow steps of building XLR cables. The processes are:

  • Get the right measurement for the cable length

It is essential to get the right measurement for the cable length to avoid making mistakes. The first thing to do is to measure your cable and get the correct length you need.

Cables are delicate pieces. Any mistake you make can ruin the whole process. While cutting the wire to get the length, leave some inches for each connector.

  • Take away the outer covering.

Cables have a protective shield that helps to keep the cable safe from destruction. The shield is thick and protects the cable from all unfavorable elements.

With the aid of a wire stripper or knife, remove the outer covering of the cable. The best way to do this is to take an inch away from each end of the cable.

While removing the outer shield, make sure you exercise a considerable level of patience and carefulness to avoid damaging the conductors and copper shielding.

  • Separate the shield from the conductors

At this stage, separate the shield of the cable from the conductors in the cable itself. After doing this, twist the strands of the copper together.

When a wire is in contact with the shielding in the cable, join it with the copper shielding. Though the drain wire or the shielding can be removed, it is not entirely crucial because the XLR cables possess big terminals.

It is also important to point out that some cables do not necessarily need any form of cloth divider to separate. However, in this case, the right thing to do is to cut it with a knife.

XLR Cable

  • Put the heat shrink as well as the connector boot.

Please take the appropriate measurement of the heat shrink and put it on the cable. It will cover any form of unprotected connection. Now, put the connector boot on the wire and use it to hold the rope as you work.

  • Strip off the layers of the conductors

It is essential to strip off the layers of the conductor. This is possible using a wire stripper. With the wire stripper in place, you can remove the negative and positive layers of the conductors.

However, it is essential to remove only a sufficient quantity to solder the conductors to the designated terminals. Twist the strands of the copper else; it affects the wires.

  • Put the wires into the connector.

Put the cable into your hand tool and then the wire in one of the terminals. While the other wire is in the terminal, it is easier to keep it down with a soldering iron. By doing this, you can also reach for the solder if need be.

  • Solder

Put the soldering iron at the required point and then use the solder appropriately. Put sufficient solder into the cup terminal but ensure it isn’t more than required to prevent it from pouring out.

You can still play safe by using the needle-nose pliers to keep the wire in place while you wait for the solder to cool.

Apply this step to the rest of the other conductors. Nonetheless, ensure you do so, by soldering the wires at the right terminal.

· Put away the heat shrink

When your conductors are at the appropriate terminals, put the heat shrink up the wire and then close the heat shrink using the lighter.

At this phase, absolute carefulness is your best bet to prevent you from causing a disaster.

·Arrange the connector

Put the plastic sleeve in the cable while making use of the slot in the sleeve. Next, please put it in the plastic containing the XLR pins.

Put the metal casing over the components, and make sure you arrange the connectors properly. Align the groove properly while ensuring that the tongue is in the appropriate position of the sleeve.

·Make the boots tight

Put the boot of the connector into the cable and screw it properly into the threads of the connector. When you tighten the end of the connector boot, it causes the end of the plastic sleeves to move inwards, making the cable stay in place.

To ascertain if you are on the right track, you will hear a clicking sound when tightening the connector boot.

 Chapter 4: Where to Get Custom XLR Cable

Information is essential in getting a custom-made XLR cable. The appropriate information to make the process successful is within reach of Cloom Tech.

If you are willing to get your choice of XLR cables, Cloom Tech is readily available to assist you with the processes.

We are aware that it is difficult getting all the required material. Not to worry, we have the appropriate information on XLR cables.

Additionally, Cloom Tech possesses the most excellent hands in the industry to assist you with assistance on the way.

Our services include customizing XLR cables, providing the right material for the job, and providing appropriate professional help.

There is nothing to worry about! Your safety and comfort are our utmost priority.

Custom XLR Cable–Conclusion

The ability to make your XLR cables saves you the stress of going through the rigors of purchasing one. It also reduces the risks of buying an inappropriate XLR cable for your desired purpose.

To avert such unpleasant circumstances, you can rely on Cloom Tech to provide you with the right kind of custom-made XLR cables.

It comes with no stress at all. All you need to do is to provide us with accurate information to build your specifications.

Cables just got easier!
