7 Major Differences between Unshielded and Shielded Power Cord


We understand the inherent frustration that comes with choosing the right cable assembly, which is why we take out the entire process of choosing your cable assembly. Instead, we create the cable assembly that you want the way you want it.

Our custom cable assemblies have better wiring and insulation than off-the-shelf cable assemblies. You can choose the connector that you want throughout your cables; you can also choose the material of the wiring itself. We test out wires for the best performance that you can buy, ensuring that the custom cable that you are buying is the best around.

John

When you know what to look for, choosing the right power cord is not difficult. Many factors can affect the performance and quality of the power cord. Should you go for shielded power cords or unshielded power cords? Can electromagnetic interference disturb the quality and efficiency of your project?

In today’s advanced industrial and commercial sectors, the custom cable manufacturing industry is a wide domain of the wire manufacturing industry. CLOOM Tech is offering custom power cables to the industrial and commercial teams. What is the difference between these two power cords? We are going to discuss the difference between shielded and unshielded power cables in detail.

Shielded cable clear view
Shielded cable clear view

1.Use Cases of Shielded vs. Unshielded Power Cord

The use cases of both power cords are the major differences between shielded and unshielded wires. Both cables serve a different purpose, so you must know about the right applications. EMI or electromagnetic interference is the reason behind the use of shield twisted pair cables.
While unshielded cables used in normal circumstances where no EMI included. Here are some important points to know about the applications and use cases of both shielded and unshielded power cords:

When to use Shielded Power Cord?

Shielded power cables have an additional layer of material to protect the internal conductor wires. The additional conductive layer protects the internal transmission of current against any type of interference and signals disturbance. Adding the extra layer of conductive material reduces the power losses in lengthy wires as there are fewer disturbances due to additional layers.

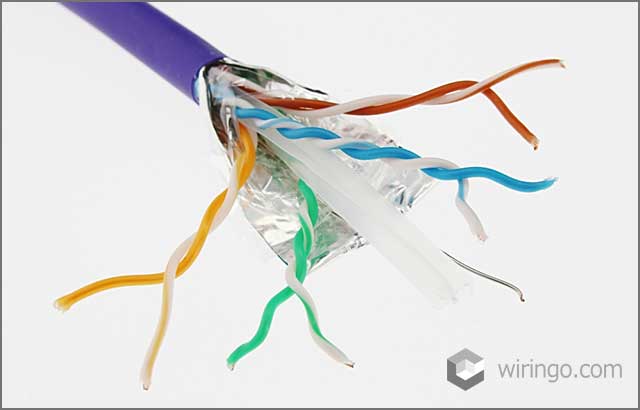

Twisted pair UTP network cable with central plastic support
Twisted pair UTP network cable with central plastic support

When to use Unshielded Power Cords?

Unshielded power cables have no additional layers of aluminum foil or any other conductive material. You can call unshielded power cables, Unshielded Twisted Pair cables too. Unshielded power cables are generally lighter and cheaper than the shielded power cables. In the presence of EMI, unshielded power cables may not perform very well. If you want an uninterrupted power supply for a longer run of cable, using the shielded power cables is a better option.

2.Pros and cons of Shielded Power Cord

Both power cables are pretty famous for different industrial and commercial applications. But there are some limitations and restrictions in the use of both cables. Before deciding on your final purchase, make sure that you know the pros and cons of both cables. Here are some pros and cons of both shielded and unshielded power cables:

Shielded Power Cords

Pros

• There is less loss of power and data due to additional protective layer

• The signal strength remains the same for a longer run of cable as there is no external interference

• Shielded power cables also reduce the emission of electromagnetic radiations as these radiations can damage the nearby devices too

• There is minimum capacitive coupled noise in shielded wires as this noise can disturb the coworkers

• Shielded cables are useful for high voltage current transmission

• The lifetime of shielded cables is way more than the standard cables

Cons

Shielded power cables are heavier and can take up a lot of space in the appliance or working space

• The cost of shielded power cables is comparatively higher

• Only trained and professional teams can handle the installation of the shielded wires

3.Pros and Cons of Unshielded Power Cord

If unshielded power cables are cheaper, it does not mean that you can choose these cables for any kind of project. The applications of the unshielded power cables are also limited. Here are some pros and cons of using unshielded power cables:

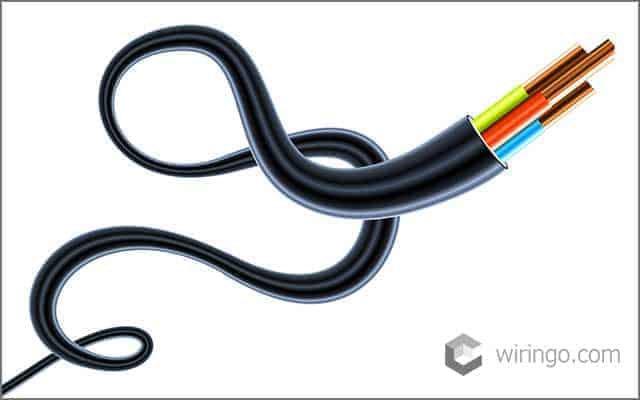

Flexible Three-wire electrical cable
Flexible Three-wire electrical cable

Pros

• The unshielded power cables are more flexible, thin and lightweight

• The manufacturing cost of unshielded power cables does not require additional layers, so these cables are cost-effective

• The installation and maintenance of unshielded power cables is easier than the shielded power cables

• A high-quality unshielded power cable can offer smooth working for years

Cons

• There is no protection against electromagnetic interference

• There might be some noise due to the flow of high current in unshielded power cables

• Unshielded power cables are not suitable for high-voltage appliances

4.Different Applications of Shielded and Unshielded Power Cord

Both cables offer different advantages and limitations. You will have to analyze the situation and the project specifications to decide the suitable option. There are different applications of both cables in industrial and commercial environments.

Shielded power cables are the best fit for the environment where EMI can affect the quality of the transmission. Most of the time, the smooth transmission is the main goal at the airports and the radio stations. The noise and disturbance due to external signals can affect the quality of the transmission. For the security systems, where different components are working in short distances, shielded power cables are better than unshielded power cables. The external layer of the conductive material in shielded power cables not only reduces signal interference but also reduces the emission of radiation. Where you need the safer and secure transmission of current, you can opt for shielded power cables.

There is no additional layering of the unshielded power cables to stop the electromagnetic interference. These cables are more suitable for commercial use than industrial use. These cables are more popular as compared to the shielded power cables because:

• Unshielded power cables are cheap

• These cables are versatile

• Unshielded power cables are easy to install

• Cables are lightweight as there is no additional layering

• Unshielded power cables are flexible

5.Power Cord-Grounding Methods

The grounding method is also a major difference between unshielded power cables and shielded power cables. As both cables come with different designs, you have to take care of both cables in different ways. If something is suitable for shielded cables, it does not mean that the same method will be suitable for unshielded cables too. The grounding process is not essential for unshielded power cables, but it is a must for shielded power cables. You need to ground the additional conductive material for the flow of high-voltage transmissions.

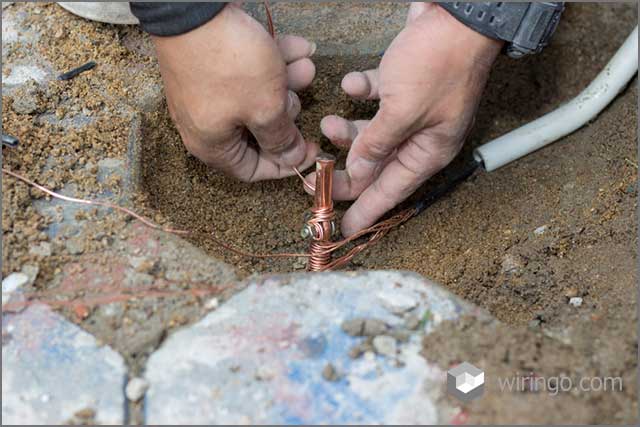

Welding copper ground wire on the ground rod
Welding copper ground wire on the ground rod

As you don’t need to worry about the grounding of unshielded power cables, the installation time for unshielded power cables is also less than the shielded ones. If you have not grounded the shielded power cables in the right way, the electromagnetic interference can even worsen the situation. While differentiating the shielded power cables from the unshielded power cables, don’t miss the difference of grounding methods.

6.Cost Assessment of Shielded vs. Unshielded Power Cord

When you are comparing the unshielded power cables with shielded power cables, applications and the project specifications are important. There is another important point that you need to consider while comparing both options, and that is the cost assessment for both cables.

Unshielded power cables are smaller in diameter and don’t need any additional protective layers, so these cables are cheaper. These cables are perfect for the use of an appliance where you need flexibility, and a lot of bending is a must. In an uncomplicated environment, unshielded cables can also resist the EMI.

Budget constraints are important for every business, so understanding the right choice for your project means that you need to consider the prices of both options. If you don’t need to minimize the EMI and unshielded power cables can do the job for you, you don’t need to invest extra money in shielded power cables.

Cable cost for both types of cables
Cable cost for both types of cables

For sophisticated setups and projects where security and efficiency of the project is a priority, using the shielded power cables seem like a good deal. Although shielded power cables are expensive, yet these cables are worth your investment. These cables are heavier, and the installation is also complicated, but you don’t need to worry about external interference and security of the data transmission.

7.Difference Between Application Environments

Both cables are different from each other in several aspects, so you need to assess the environment where you need to use these cables. The unshielded wires are perfect for homes and small offices. Any work environment where a complicated arrangement of devices is not an issue, unshielded power cables are suitable for such an environment.

The shielded power cables are perfect for industries and larger environments where nearby devices can create a disturbance. When you need the secure transmission of current with an additional layer of the conductive material, you can go for shielded power cables.

Conclusion

Either you want shielded power cables or unshielded power cables, making the right decision is important. Our team of professional engineers and designers can manufacture custom power cables for industrial and commercial use at an affordable cost. If you want to hire our services for your project, we would like to discuss the details right away.
